Supporting electrical containment, small F&R pipework and single fan A/C units
>>> Specification

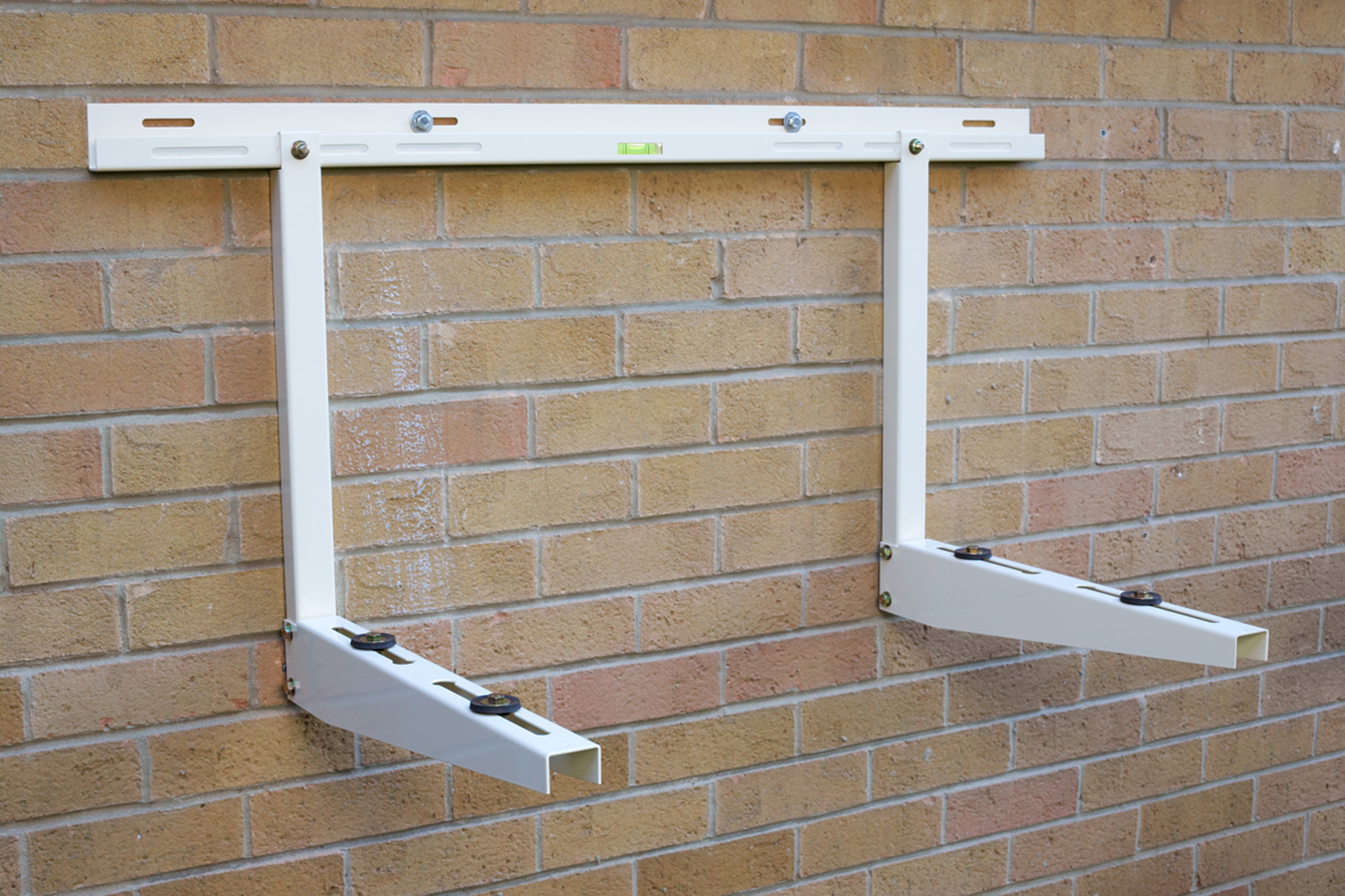

Pump House offers a range of flat packed brackets, the Type 1 bracket has uprights and mounts directly onto the wall. Type 2 comes with a crossbar so that uprights can be spaced exactly as required. The integral spirit level makes installation easier. Type 3 brackets have a unique interlocking mechanism enabling the arms to be joined in a matter of seconds.
For improved corrosion resistance all metal receives a 100% zinc plating, followed by a hard ED coating, before being finished with an external grade polyester textured powder coating in RAL 7032.
>>> Features & Benefits
Adjustable wall spacers to level the arms
Safe working load up to 250kg
Suitable to match most brands of condensing units and domestic air source heat pumps
Extra long arms (up to 1 metre available for larger condensing units)
Textured finish in (RAL 7032)
>>> Weather-resistant
Sea salts are very corrosive and affect both ferrous and non-ferrous metals. Coastal installations are particularly at risk as they are frequently exposed to sea salt solutions followed by dry periods, where wet, dry cycle produces a very corrosive environment. We strongly recommend that in such locations only our stainless steel brackets are installed.
| Code | Size | Description | Crossbar mm | Upright mm | Support Arm mm | Safe Working Load | Max Load | Weight |
|---|---|---|---|---|---|---|---|---|
| CBR1-S | S | Type 1 Bracket | - | 450 | 480 | 60kg | 120kg | 3.6kg |
| CBR1-M | M | Type 1 Bracket | - | 500 | 530 | 90kg | 180kg | 4.6kg |
| CBR1-L | L | Type 1 Bracket | - | 550 | 580 | 140kg | 280kg | 4.7kg |
| CBR1-XL | XL | Type 1 Bracket | - | 550 | 660 | 250kg | 500kg | 8.8kg |
| CBR1-XXL | XXL | Type 1 Bracket | - | 550 | 1000 | 250kg | 500kg | 11kg |
| CBR2-S | S | Type 2 Bracket | 720 | 400 | 400 | 60kg | 120kg | 3.8kg |
| CBR2-M | M | Type 2 Bracket | 900 | 500 | 500 | 90kg | 180kg | 4.6kg |
| CBR2-L | L | Type 2 Bracket | 1100 | 550 | 540 | 140kg | 280kg | 6.6kg |
| CBR2-XL | XL | Type 2 Bracket | 1040 | 550 | 660 | 250kg | 500kg | 16.2kg |
| CBR2-M-SS | M | Type 2 Stainless Steel Bracket | 900 | 500 | 500 | 90kg | 180kg | 4.6kg |
| CBR2-L-SS | L | Type 2 Stainless Steel Bracket | 1040 | 550 | 540 | 140kg | 280kg | 6.7kg |
| CBR2-XL-SS | XL | Type 2 Stainless Steel Bracket | 1040 | 550 | 660 | 160kg | 280kg | 16.3kg |
| CBR2-EL | S | Type 2 Economy Bracket | 780 | 365 | 550 | 60kg | 120kg | 3.7kg |
| CBR3-M | M | Type 3 Bracket | 900 | 500 | 500 | 90kg | 180kg | 6.8kg |
| CBR3-L | L | Type 3 Bracket | 1040 | 550 | 540 | 140kg | 280kg | 8.3kg |
