>>> Specification

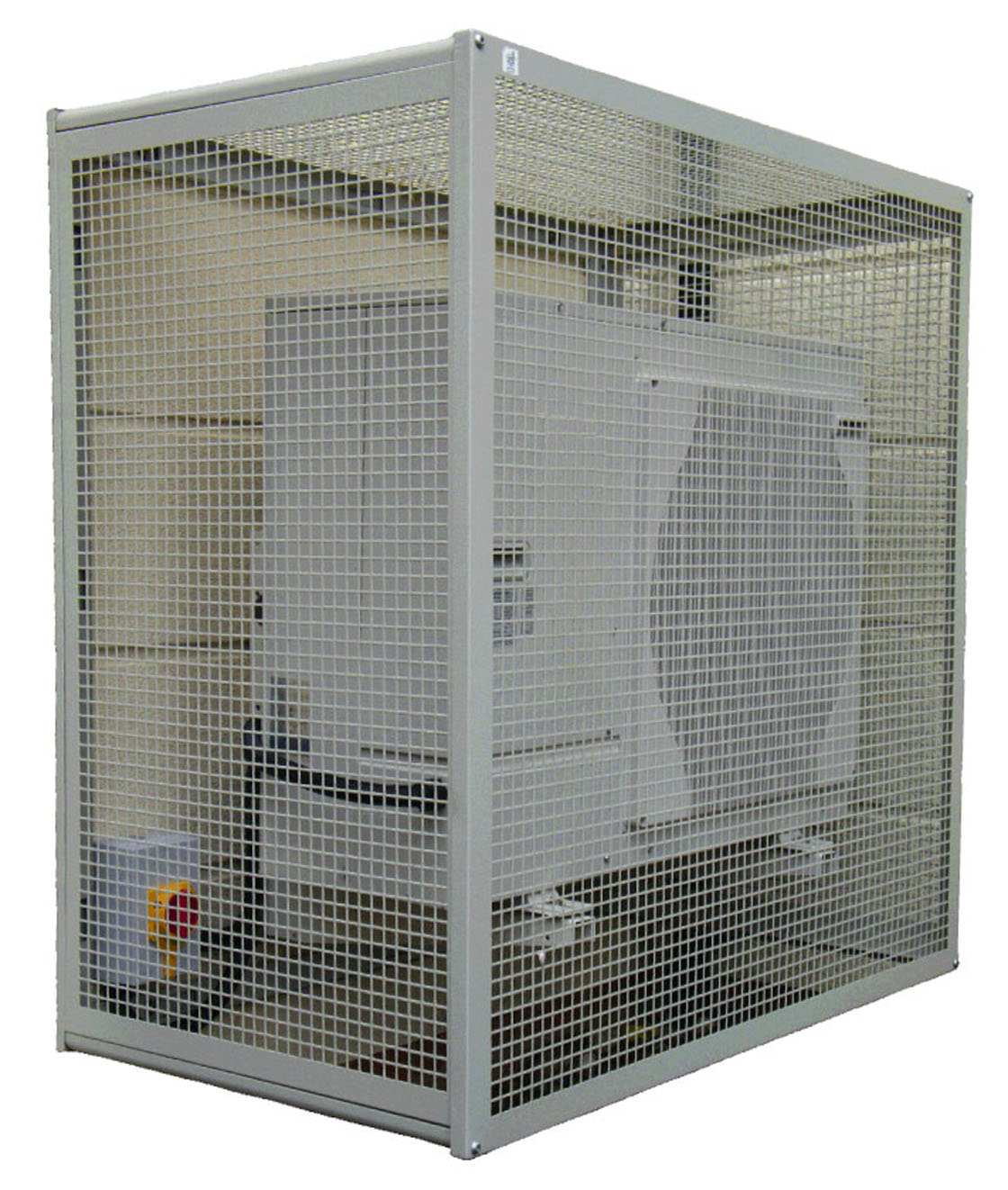

Pump House manufacture a range of weather-resistant, steel mesh guards, offering a safe solution to vandalism and accidental damage of your expensive AC unit or ASHP. The range is ideal for all manufacturers of air conditioning and air source heat pump units. The unique sliding panel system allows for easy installation, which is secured into place when the front panel is fitted. Back panels are also available to make the guard free standing. For wall mounted units, we can offer a base panel for full security.
>>> Features & Benefits
A unique sliding panel system
All panels can be removed for maintenance by unscrewing just four bolts
Additional bottom and back panels are available for stand-alone/high wall options
All bolts are allen-headed for added security
Quick and easy to install and access for maintenance
Textured finish in RAL7032
PDF Data Sheets:
Pump House ASHP Guards Data Sheet
Pump House 500 Series Guards Data Sheet
Pump House 750 Series Guards Data Sheet
Pump House 900 Series Guards Data Sheet
Pump House VR/VRF Series Guards Data Sheet
| Code | Size | External Height mm | External Width mm | External Depth mm | Internal Height mm | Internal Width mm | Internal Depth mm | Weight |
|---|---|---|---|---|---|---|---|---|
| CG-S | S | 750 | 1050 | 460 | 720 | 1020 | 450 | 18kg |
| CG-M | M | 1150 | 1150 | 650 | 1120 | 1120 | 640 | 27kg |
| CG-L | L | 1450 | 1150 | 650 | 1420 | 1120 | 640 | 30kg |
| CG-XL | XL | 1800 | 1150 | 650 | 1770 | 1120 | 640 | 40kg |
| CG-500-S | S | 620 | 1050 | 500 | 590 | 990 | 470 | 13kg |
| CG-500-M | M | 1020 | 1050 | 500 | 990 | 990 | 470 | 18kg |
| CG-500-L | L | 1420 | 1050 | 500 | 1390 | 990 | 470 | 23kg |
| CG-750-S | S | 950 | 1150 | 750 | 920 | 1120 | 740 | 25kg |
| CG-750-M | M | 1150 | 1150 | 750 | 1120 | 1120 | 740 | 32kg |
| CG-750-L | L | 1450 | 1150 | 750 | 1420 | 1120 | 740 | 33kg |
| CG-750-INV | INV | 1150 | 1450 | 750 | 1120 | 1420 | 740 | 33kg |
| CG-900L-INV | L-INV | 1150 | 1450 | 900 | 1120 | 1420 | 890 | 34kg |
| CG-900L-SQ | L-SQ | 1450 | 1450 | 900 | 1420 | 1370 | 890 | 51kg |
| CG-900-XXL | XXL | 1800 | 1450 | 900 | 1770 | 1370 | 890 | 60kg |
| CG-VRF-BP | BP-S | 2000 | 1160 | 1200 | 1970 | 1130 | 1200 | 64kg |
| CG-VRF-EP-6 | BP-S | 2000 | 580 | 1200 | 1970 | - | 1200 | 24kg |
| CG-VRF-EP-12 | BP-M | 2000 | 1160 | 1200 | 1970 | - | 1200 | 41kg |
