H-Frame Kits to support ducts, pipes and electrical containment

>>> Features & Benefits

Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised bracketry
Rubber mats adhered to feet
Three-foot sizes available
The kit comes supplied in a box
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services

We are also a member of:

>>> Specification

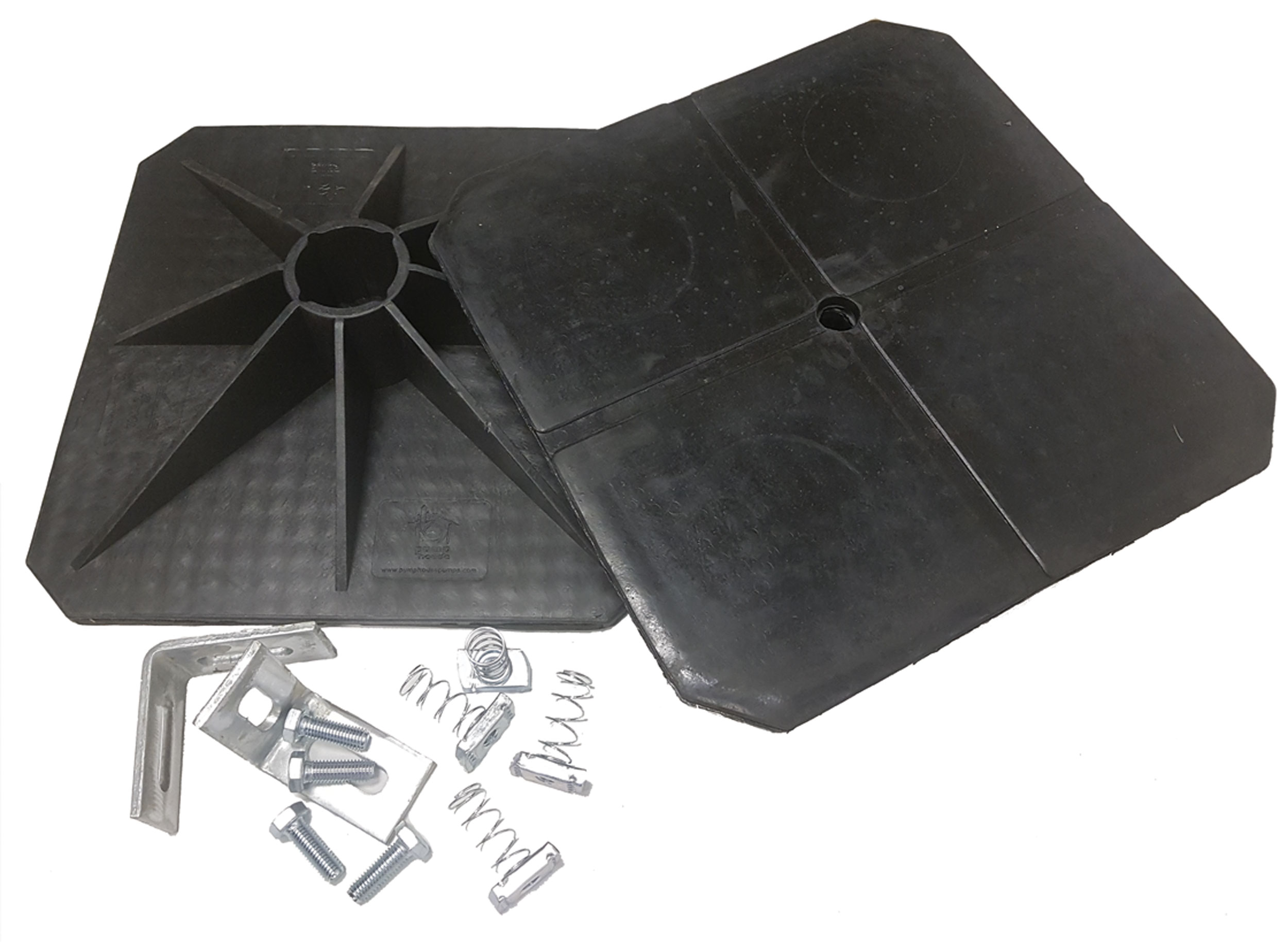

Our H-Frame Kits offer the full installer flexibility by providing a solution where they can supply their strut to suit their installation requirements. The H-frame kits are supplied with a pair of either 320mm square feet, most widely used in the majority of installations, and 500mm square foot version kit is available. All packages are supplied with hot dip galvanised angle brackets together with all the necessary fixings to assist the installer in a low cost, versatile and fast assembly solution on-site ‘strut frame by others.’

Part Code Description Foot Size Safe Working Load Weight

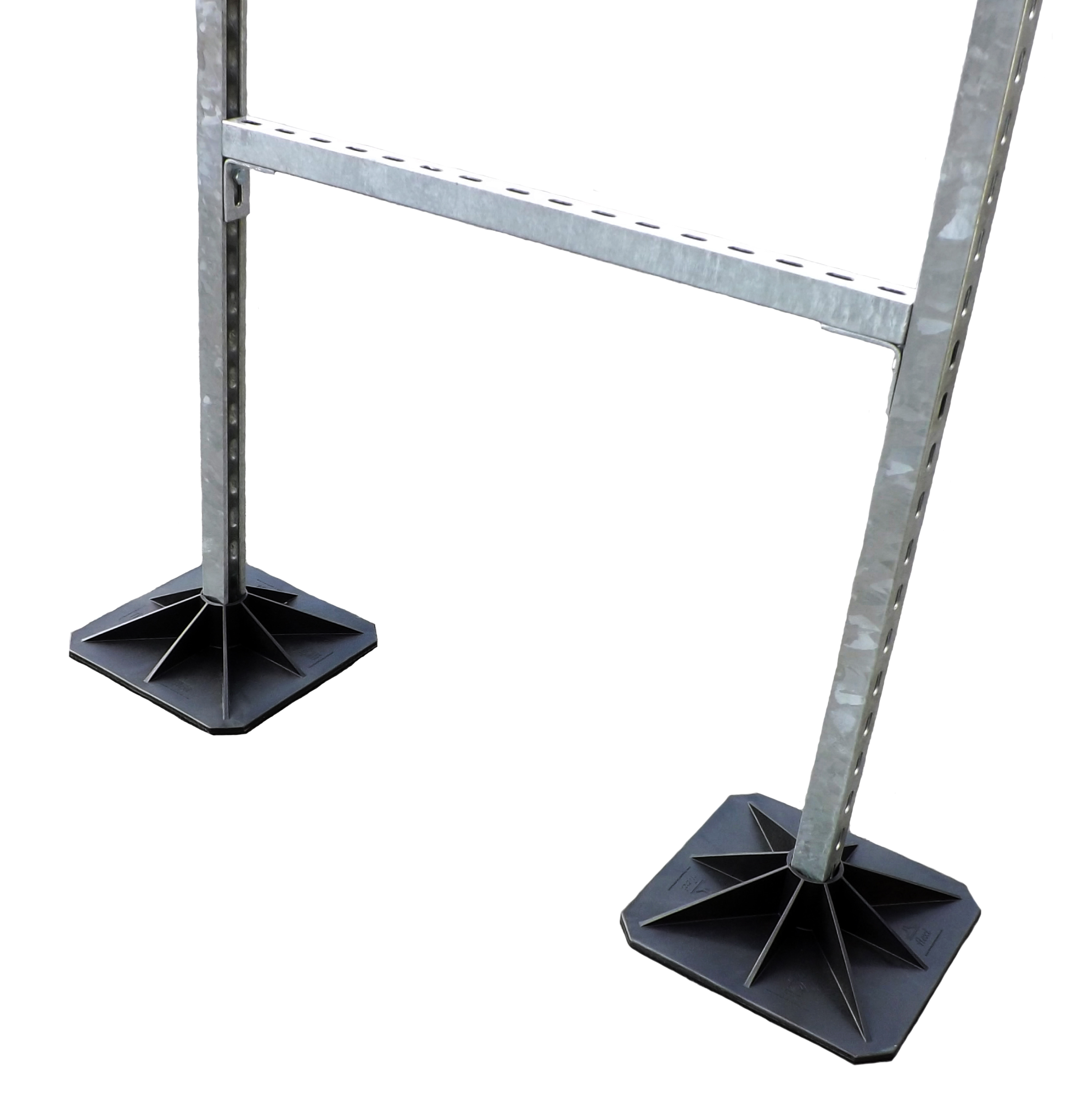

F-HF-320 Flexi H-Frame Kit - 2 square black feet with fittings 320mm x 320mm 250kg 4kg

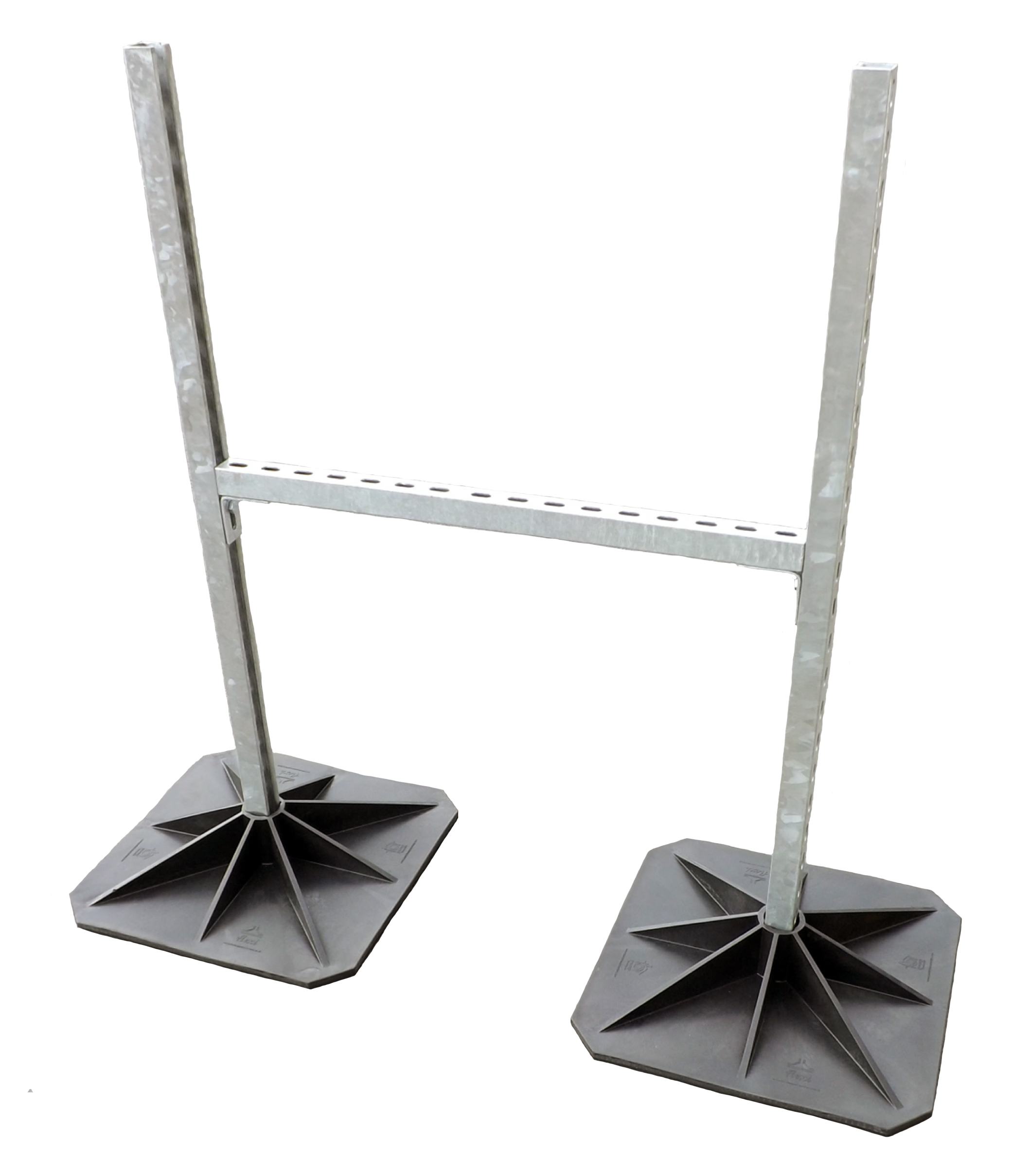

F-HF-500 Flexi H-Frame Kit - 2 square black feet with fittings 500mm x 500mm 600kg 13kg
