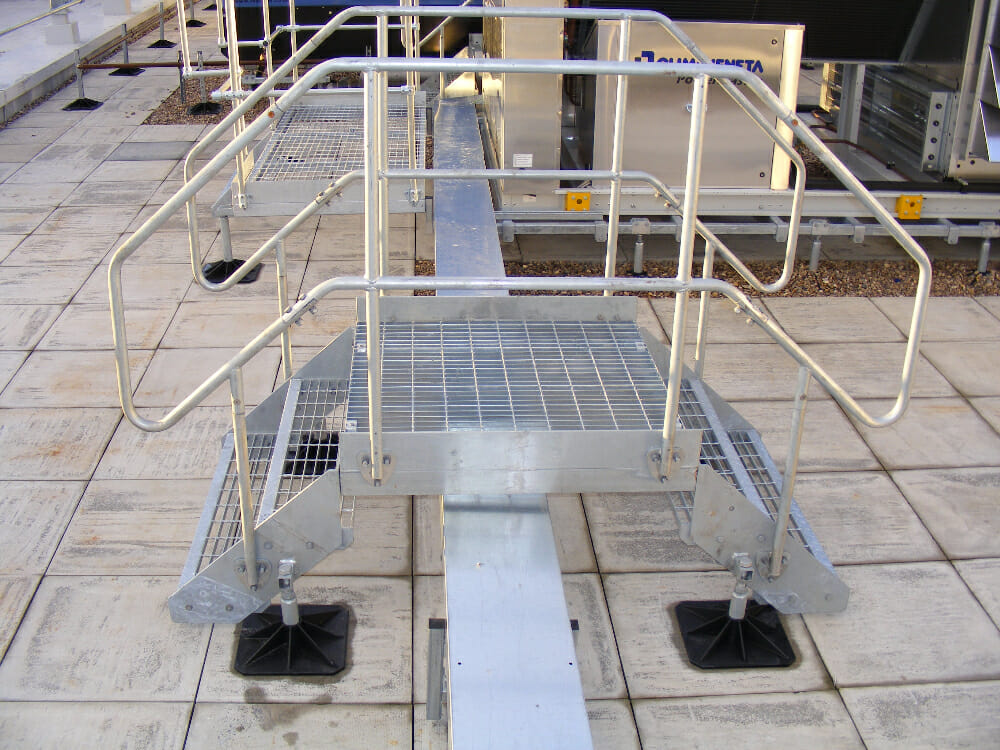

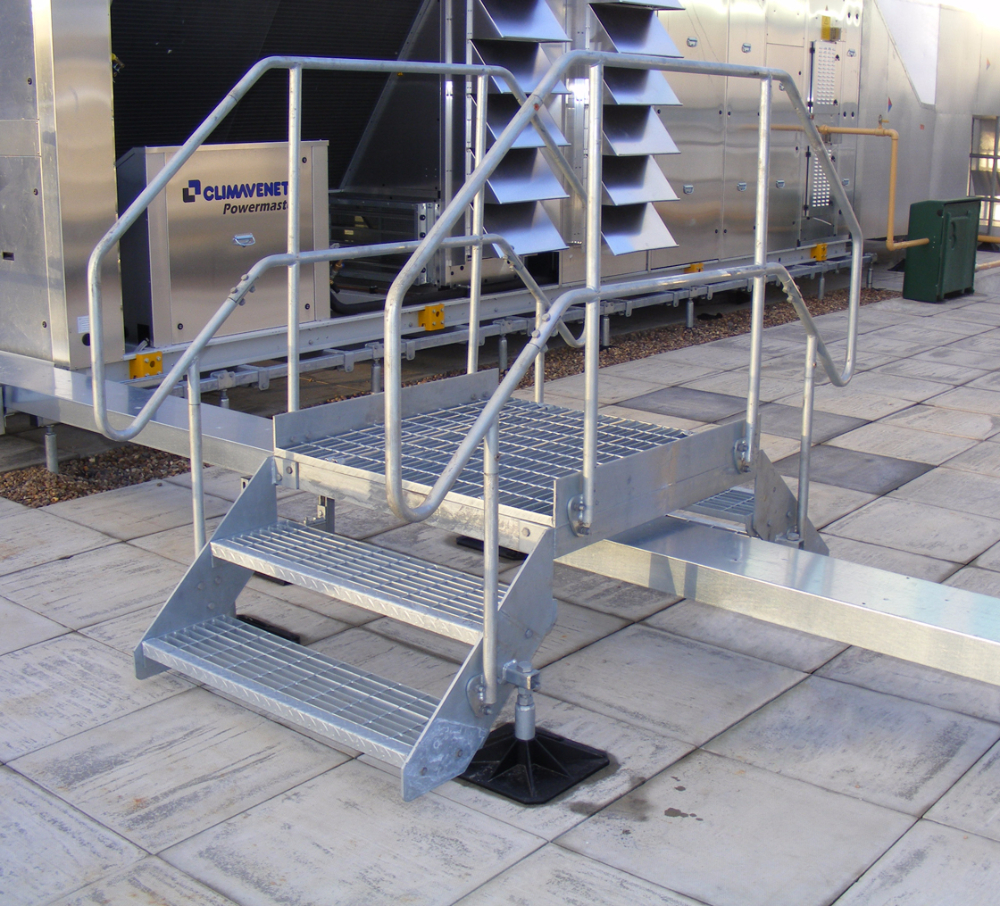

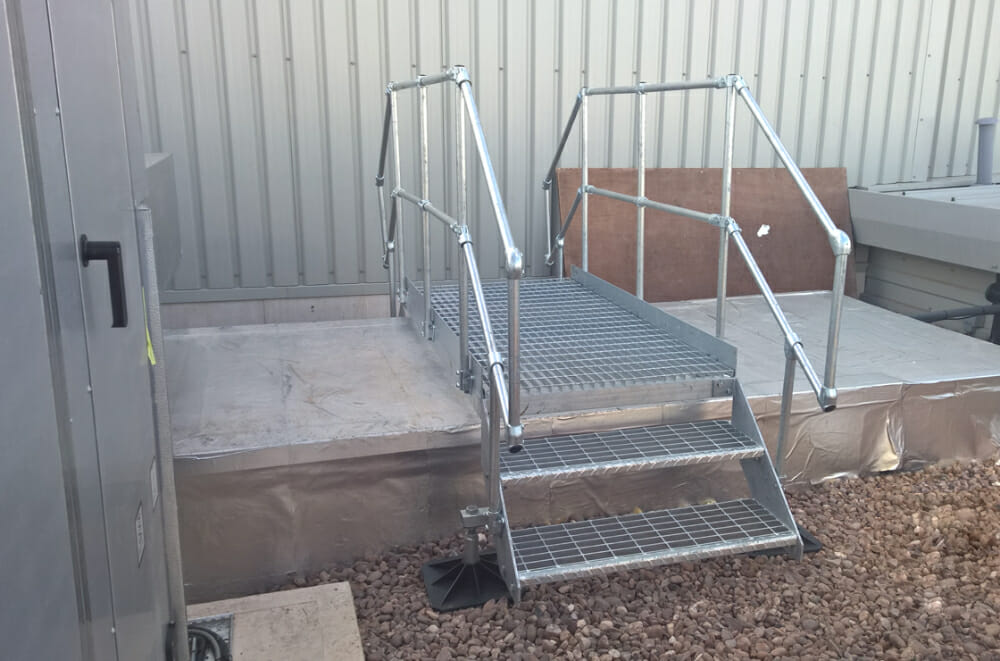

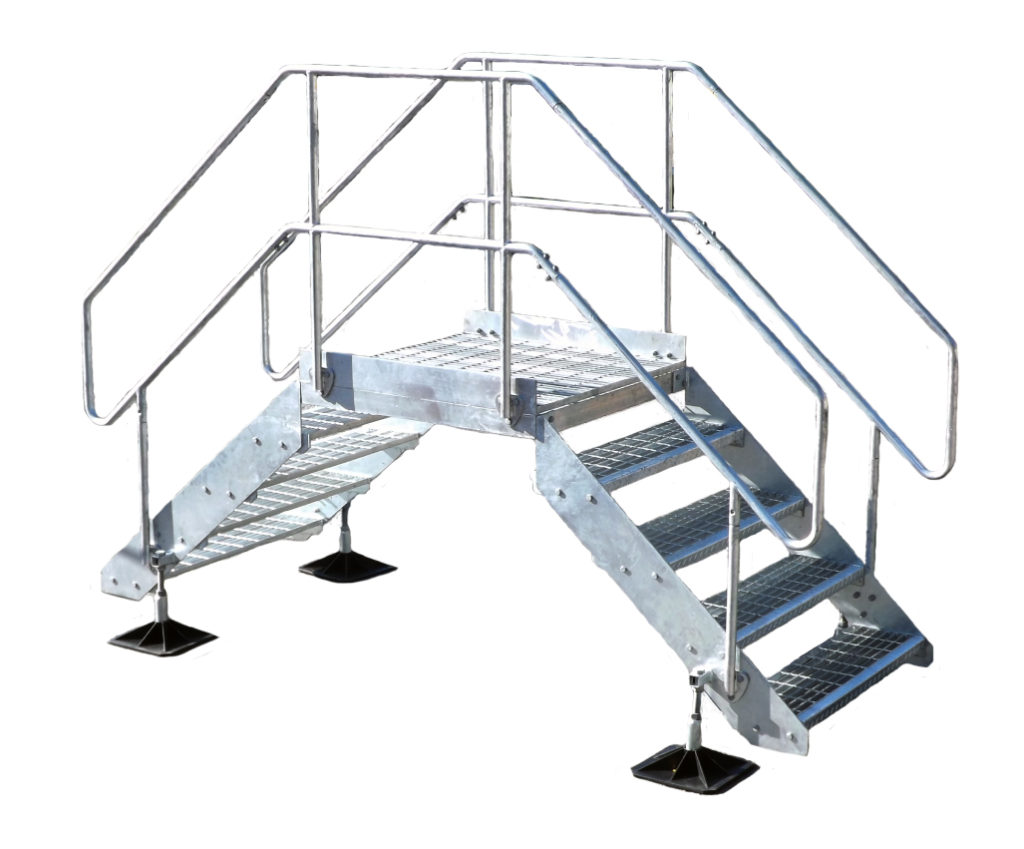

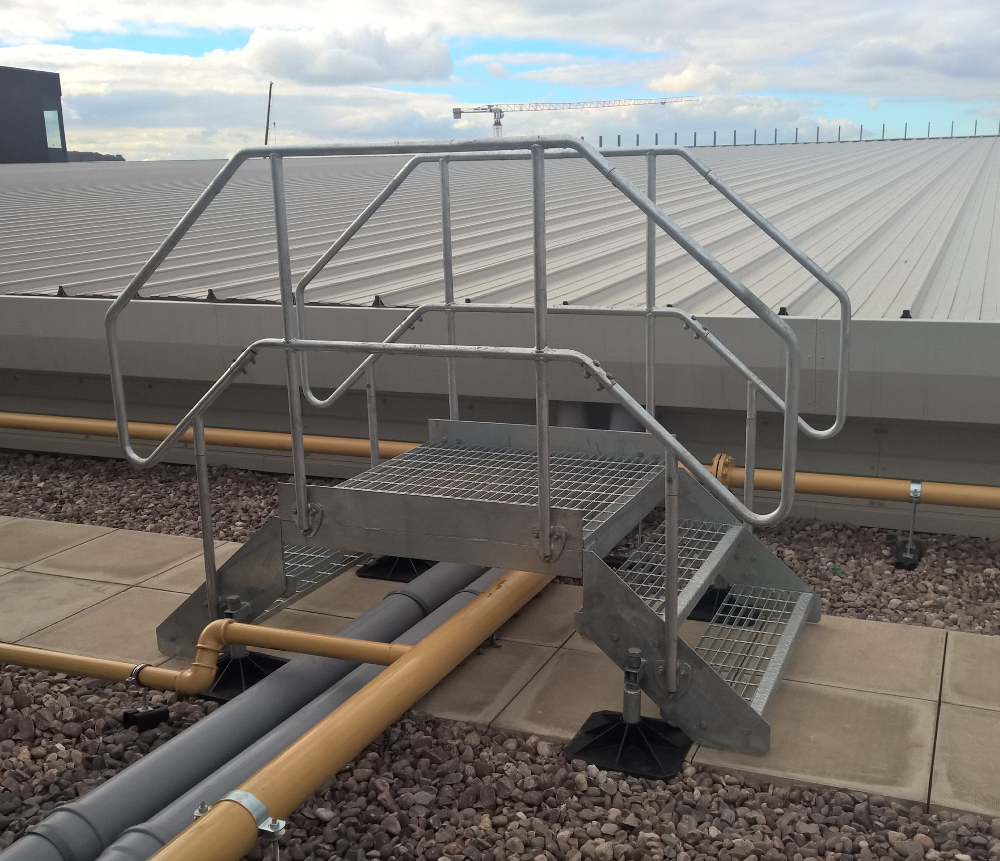

Roof Access Step Overs
>>> Features & Benefits
Non-penetrative support
Site survey available
Fast and simple installation
Hot dip galvanised frameworks
Fully working drawings prior to manufacture
British Standard compliant and meets the Work at Height Regulations Act 2005
Full AutoCAD drawing support offered
Load management and wind calculations available
Full on-site support and surveying services
>>> Specification
With the introduction of the work at height regulations back in 2005, the regulations apply to all work at height where there is a risk of a fall liable to cause personal injury. This regulation places duty on employers, the self-employed and any person that controls the work of others, e.g. facility managers, building owners/end users etc. Flexi Access solutions are designed to current British Standards; we offer full working drawings, site surveys and all our access range is manufactured in the UK. GRP options are also available upon request. So whether it’s a cat ladder, companionway ladder, stairs, ramps, walkways or a combination of all these, Flexi Access will provide you and your workforce with a safe access solution. We can also offer a custom design service to suit your needs.
We are also a member of:
| Part Code | Description | Thread Qty | Landing size mm | Clearance Height mm | Foot Size |
|---|---|---|---|---|---|
| F-SO-2 | Flexi Step Over 2 up / 2 down | 2 up / 2 down | 1000mm x 1000mm | 560mm | 320mm x 320mm |
| F-SO-3 | Flexi Step Over 3 up / 3 down | 3 up / 3 down | 1000mm x 1000mm | 780mm | 320mm x 320mm |
| F-SO-4 | Flexi Step Over 4 up / 4 down | 4 up / 4 down | 1000mm x 1000mm | 1000mm | 320mm x 320mm |
| F-HO-600 | Flexi Hop Over - 600mm | - | 1000mm x 600mm | 180mm | 320mm x 320mm |
| F-HO-1000 | Flexi Hop Over - 1000mm | - | 1000mm x 1000mm | 180mm | 320mm x 320mm |
| F-HO-HR | Flexi Hand Rail for Hop Over (1100mm high) | - | - | - | |
| F-HO-600-1 | Flexi Hop Over - 600mm Step Over 1 up 1 down | 1 up / 1 down | 1000mm x 600mm | 410mm | 320mm x 320mm |
| F-HO-1000-1 | Flexi Hop Over - 1000mm Step Over 1 up / 1 down | 1 up / 1 down | 1000mm x 1000mm | 410mm | 320mm x 320mm |
