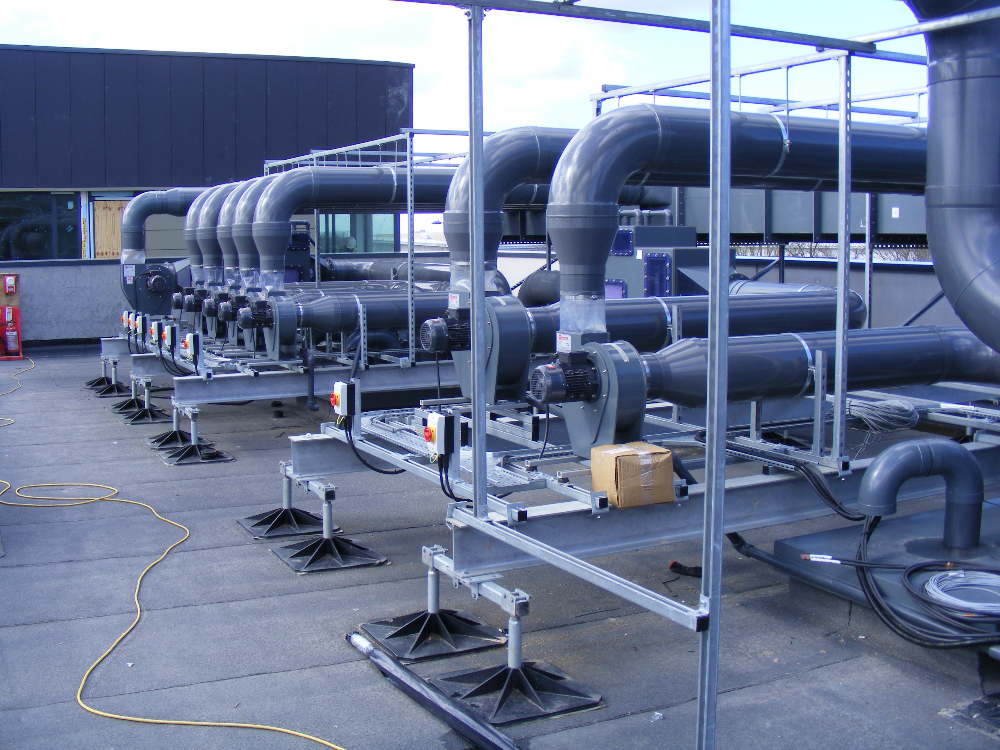

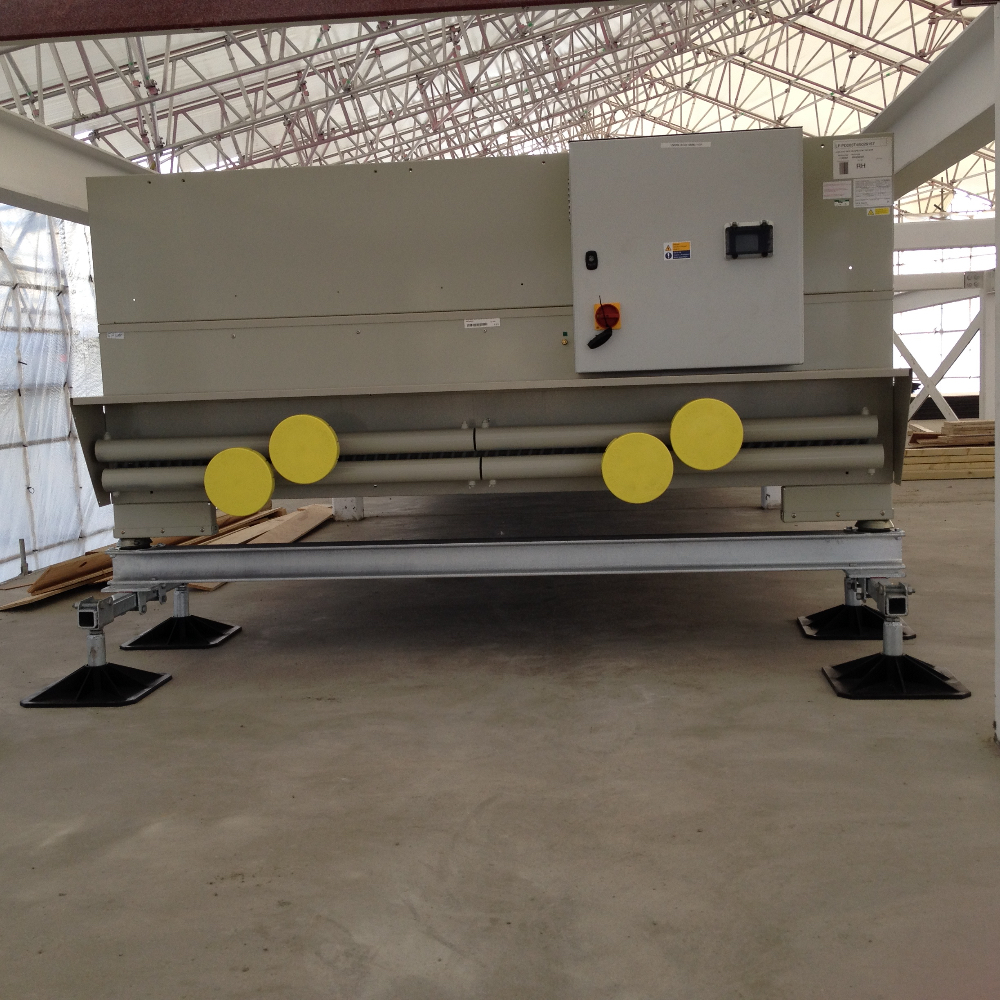

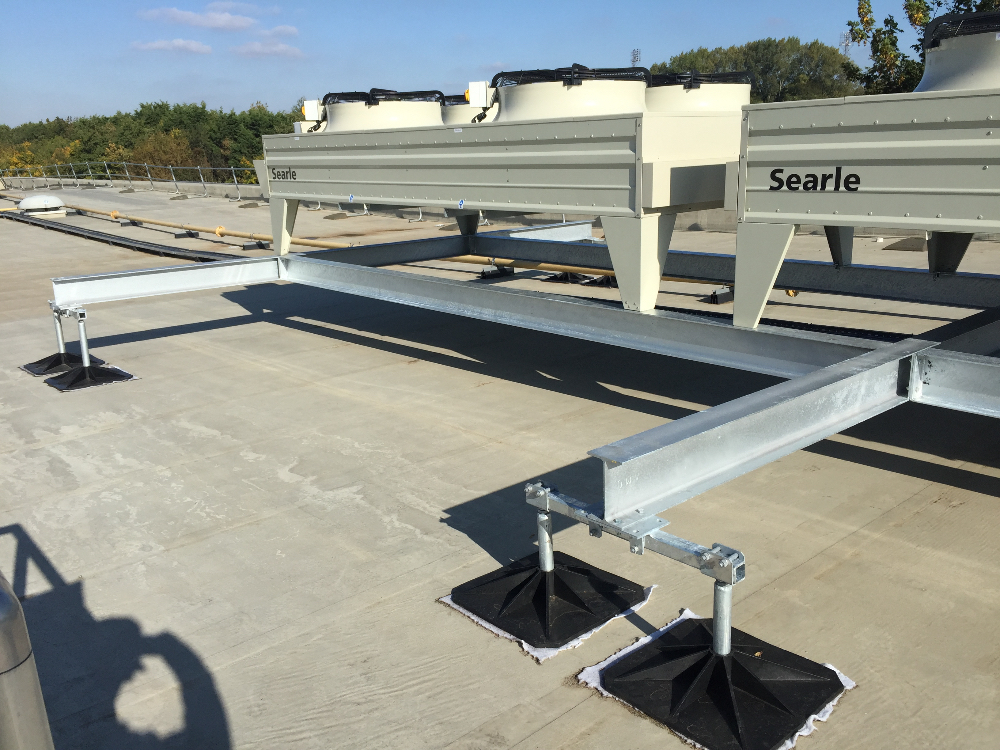

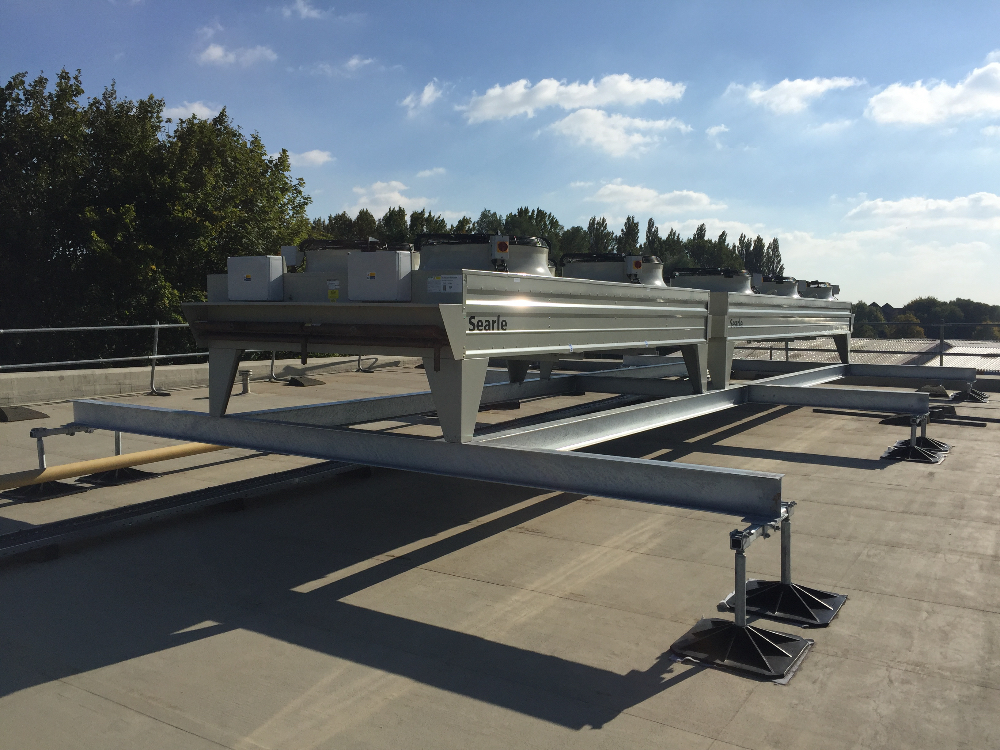

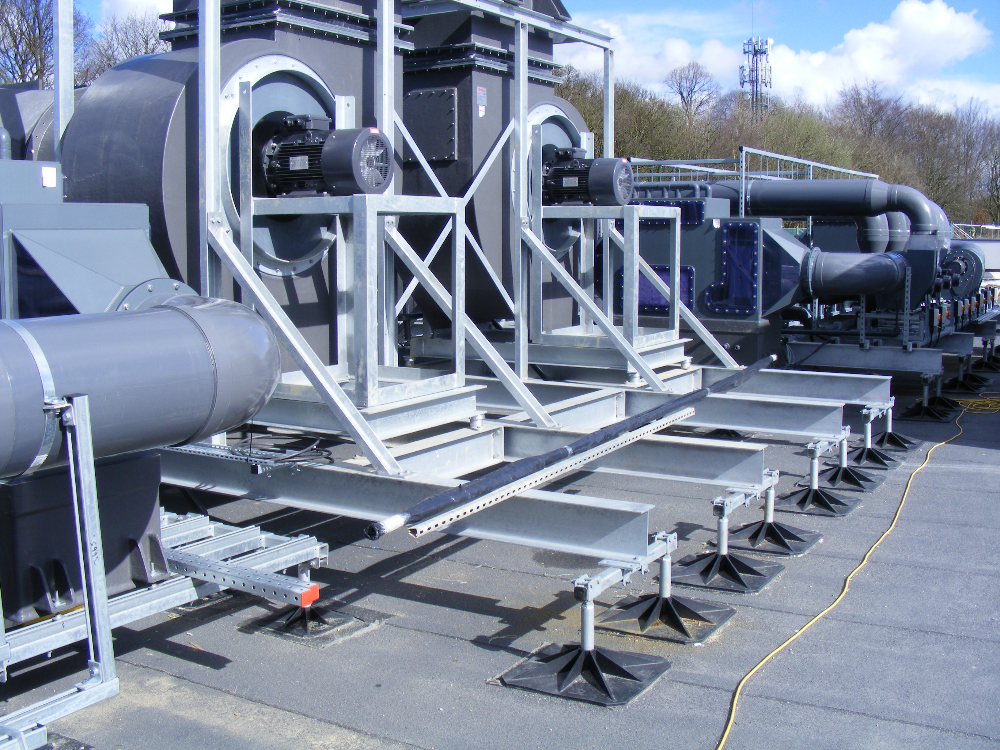

Frames for large pipes, air handling units, chillers and packaged plant rooms.



>>> Features & Benefits

Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Fully adjustable to roof falls
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services



>>> Specification

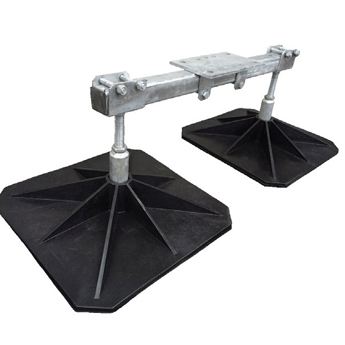

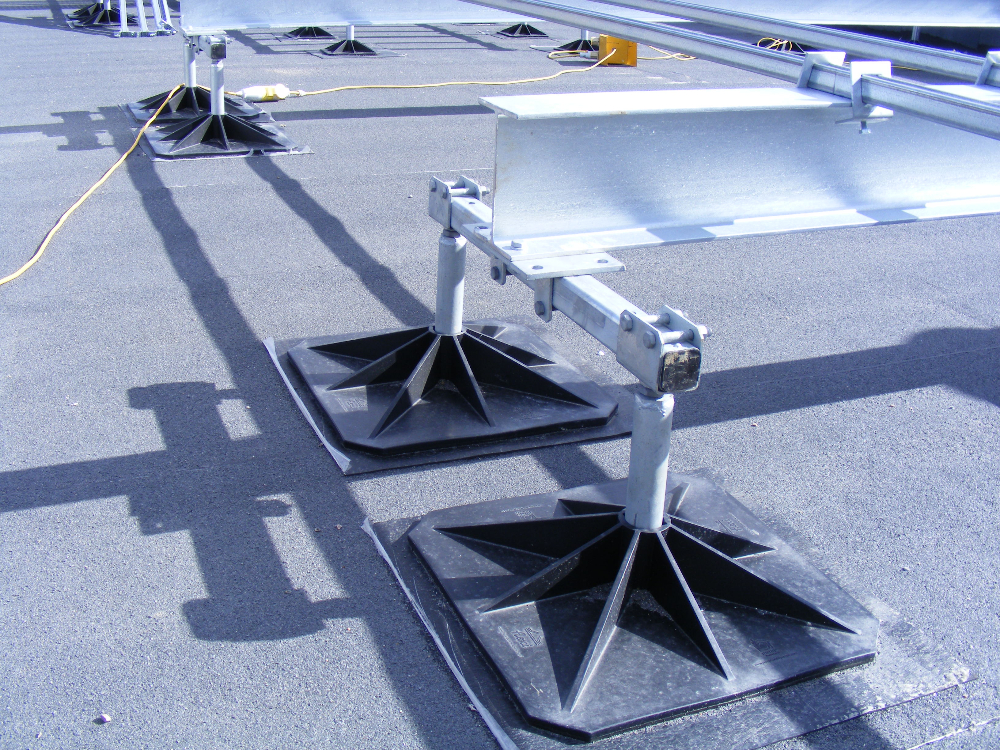

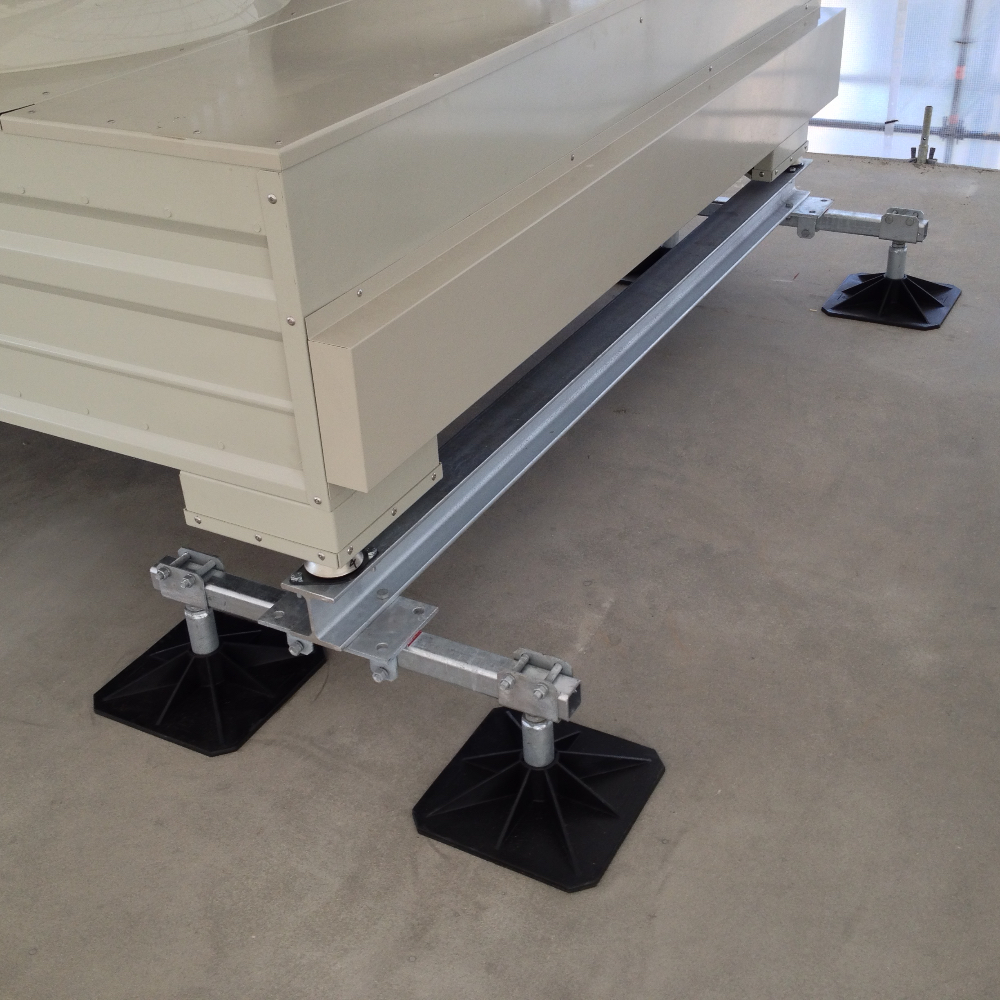

These robust & versatile free-standing modular frames are supplied with fully adjustable leg assemblies in either our 320 x 320mm or 500 x 500mm polypropylene feet that both incorporate anti-vibration rubber mats adhered to the underside. Robust 50 x 50mm box cross bars are 5mm thick to cater for mid-span point loads resulting in even load dispersal through the framework down to each foot. The optional mounting plate can also be purchased in addition or as an alternative to the adjustment being in the leg assemblies. Therefore, a non-adjustable twin is also available.

We are also a member of:

Part Code Description Length Width Height mm Weight Max Load
F-TWIN-320-A Flexi Twin (adjustable legs) 1000mm 320mm 240-370mm 14kg 350kg
F-TWIN-500-A Flexi TWIN (adjustable legs) 1200mm 500mm 240-370mm 30kg 1000kg
F-TQ-ADJ-S Single Mounting Plate 250mm 150mm - 3kg -
F-TQ-ADJ-D Double Mounting Plate 250mm 150mm 170mm (adjustable) 8kg -
