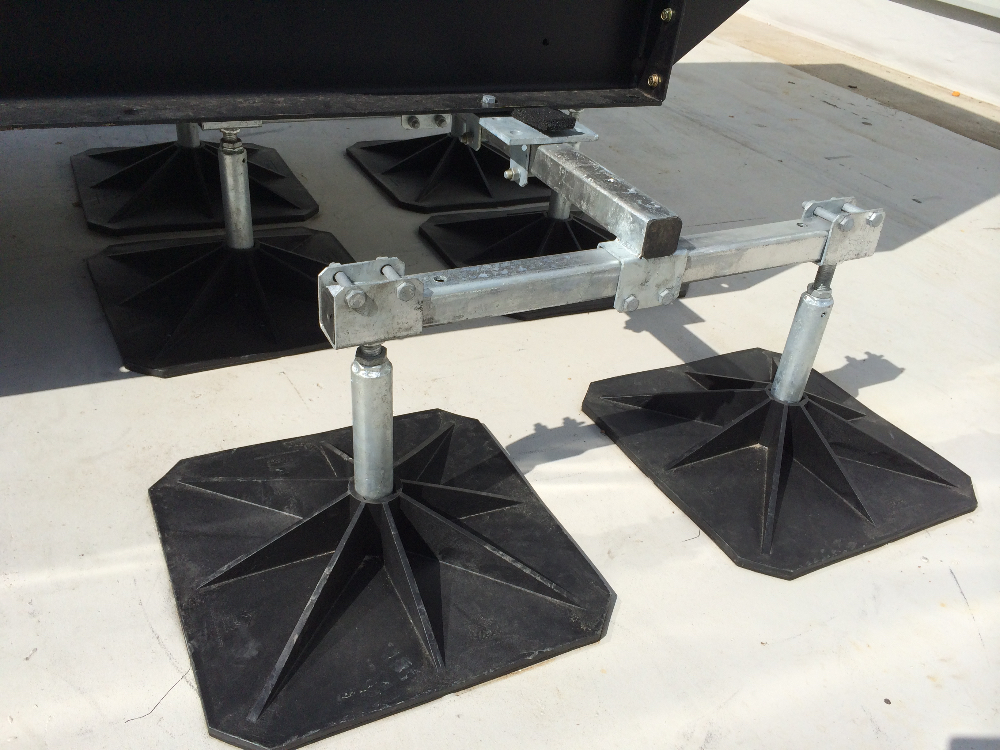

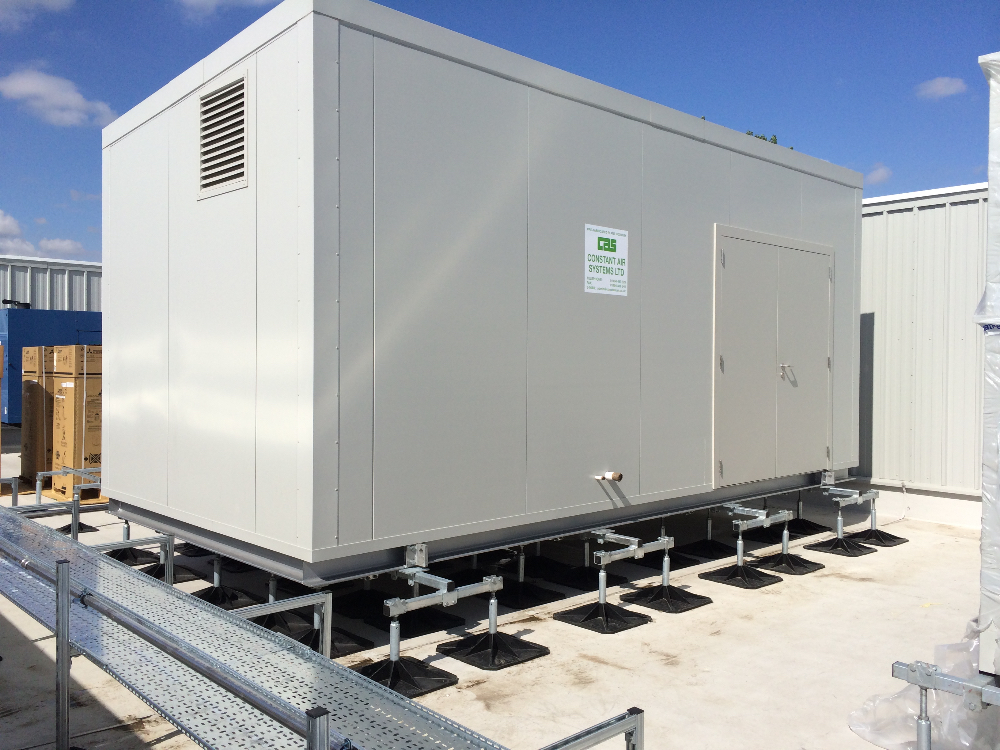

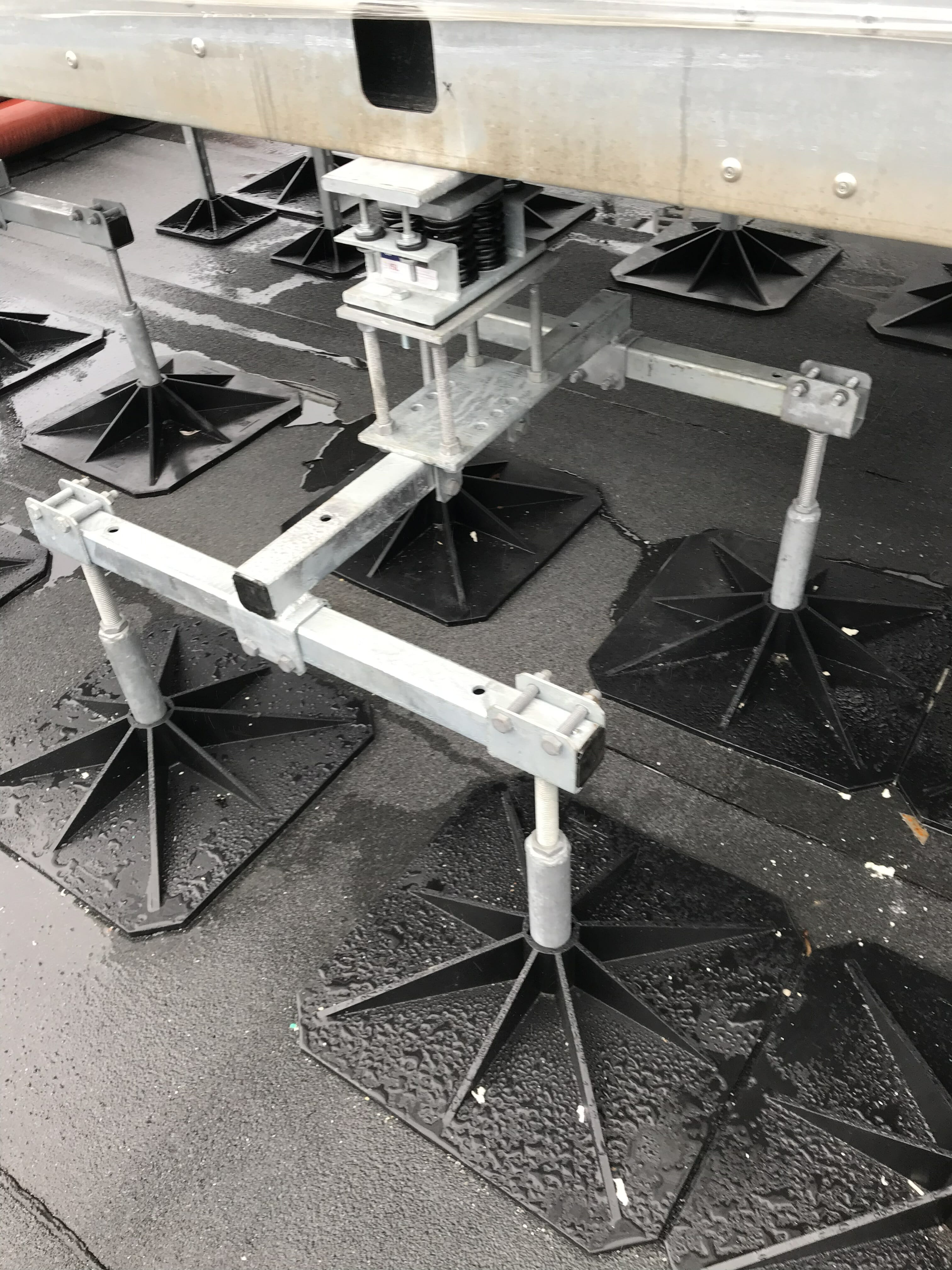

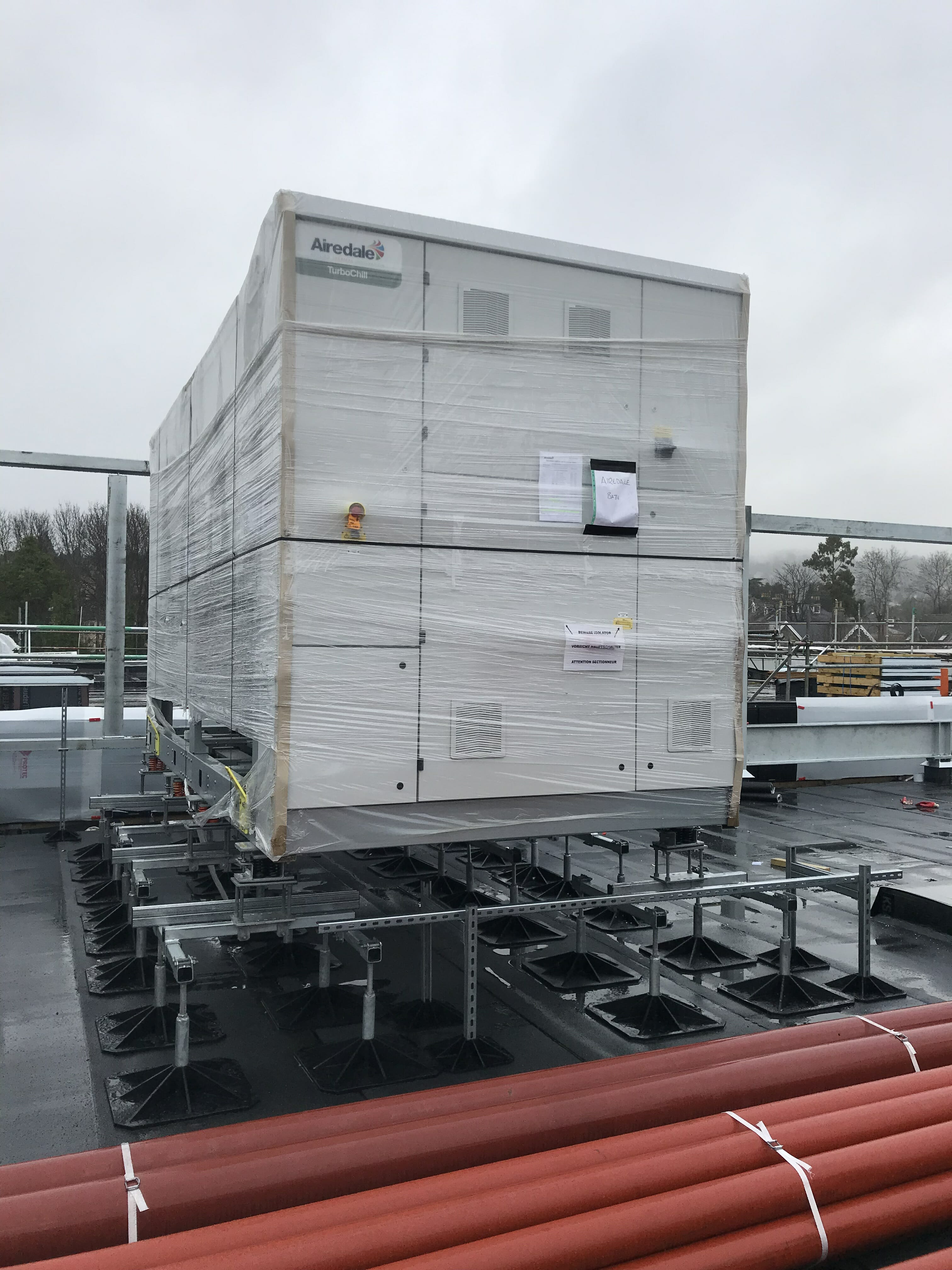

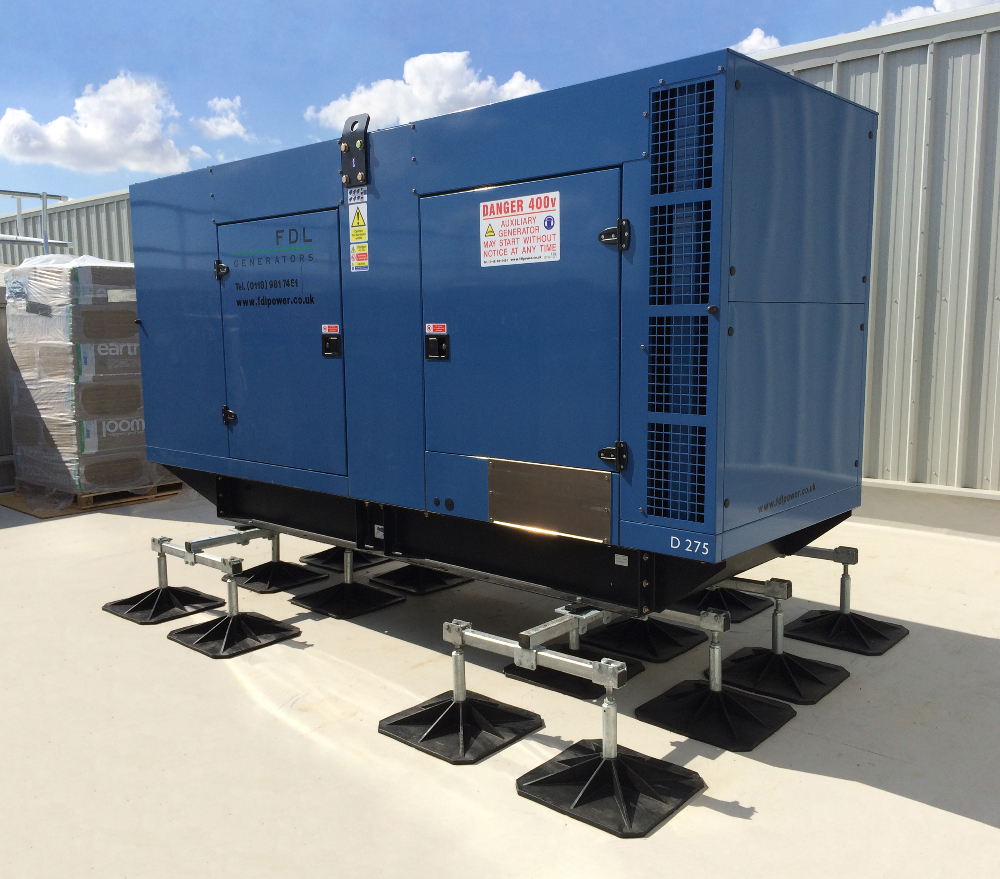

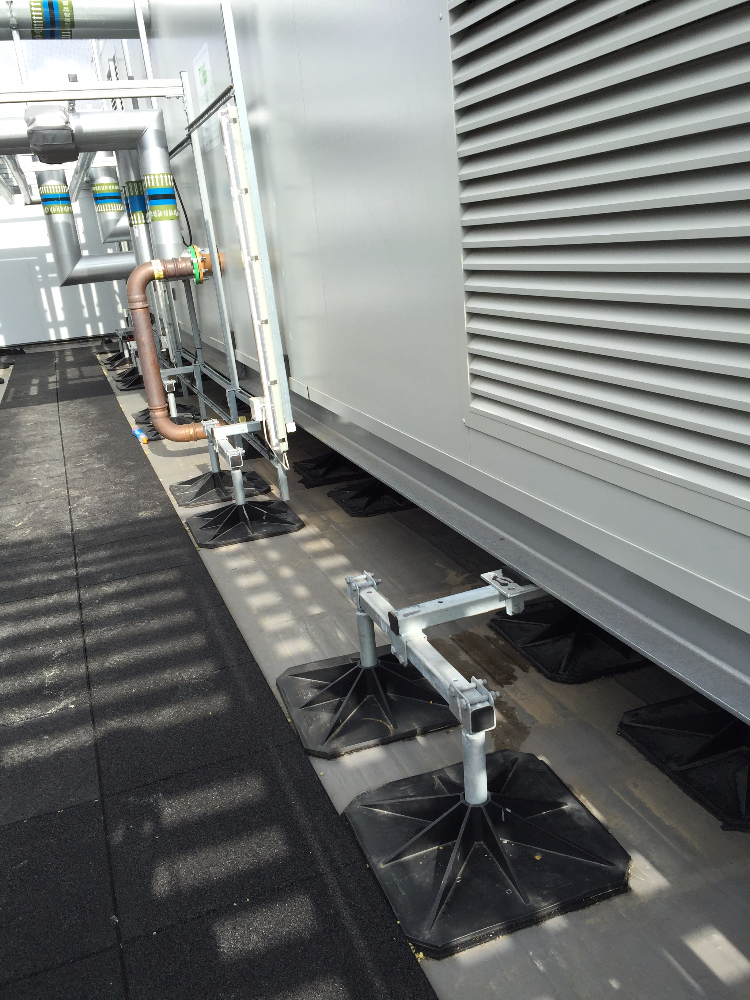

Flexi Quad Heavy-Duty frameworks to support larger air handling units, chillers and packaged plant rooms.
>>> Features & Benefits
Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Fully adjustable to roof falls
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services
>>> Specification

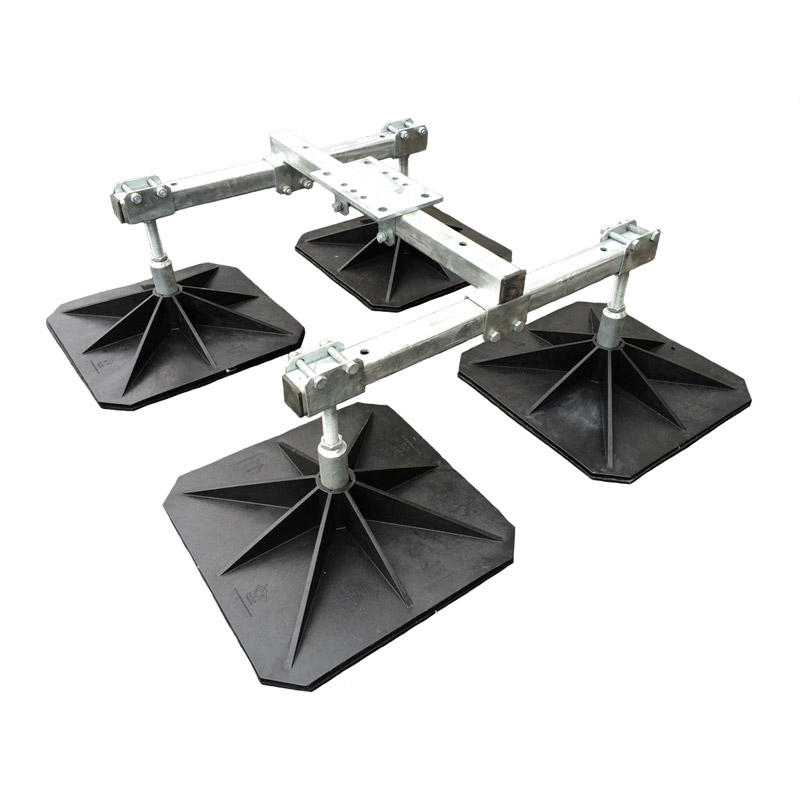

These robust & versatile free-standing modular frames are supplied with fully adjustable leg assemblies in either our 320 x 320mm or 500 x 500mm polypropylene feet which incorporate anti-vibration rubber mats adhered to the underside. Robust 50 x 50mm box end bars and crossbars both being 5mm thick in section, cater for picking up the point load mid-span resulting in even load dispersal through the framework down to the feet. The optional adjuster plate can also be purchased, and these are supplied with fixings. For lighter services supports, please visit our AC/VRF Frames range.
We are also a member of:
| Part Code | Description | Length | Width | Height mm | Weight | Max Load |
|---|---|---|---|---|---|---|
| F-QUAD-320-A | Flexi QUAD (adjustable legs) | 1020mm | 1060mm | 294-370mm | 35g | 700kg |
| F-QUAD-500-A | Flexi QUAD (adjustable legs) | 1200mm | 500mm | 294-370mm | 64kg | 2000kg |
| F-TQ-ADJ-S | Single Mounting Plate | 250mm | 150mm | - | 3kg | - |
| F-TQ-ADJ-D | Double Mounting Plate | 250mm | 150mm | 170mm (adjustable) | 8kg | - |
