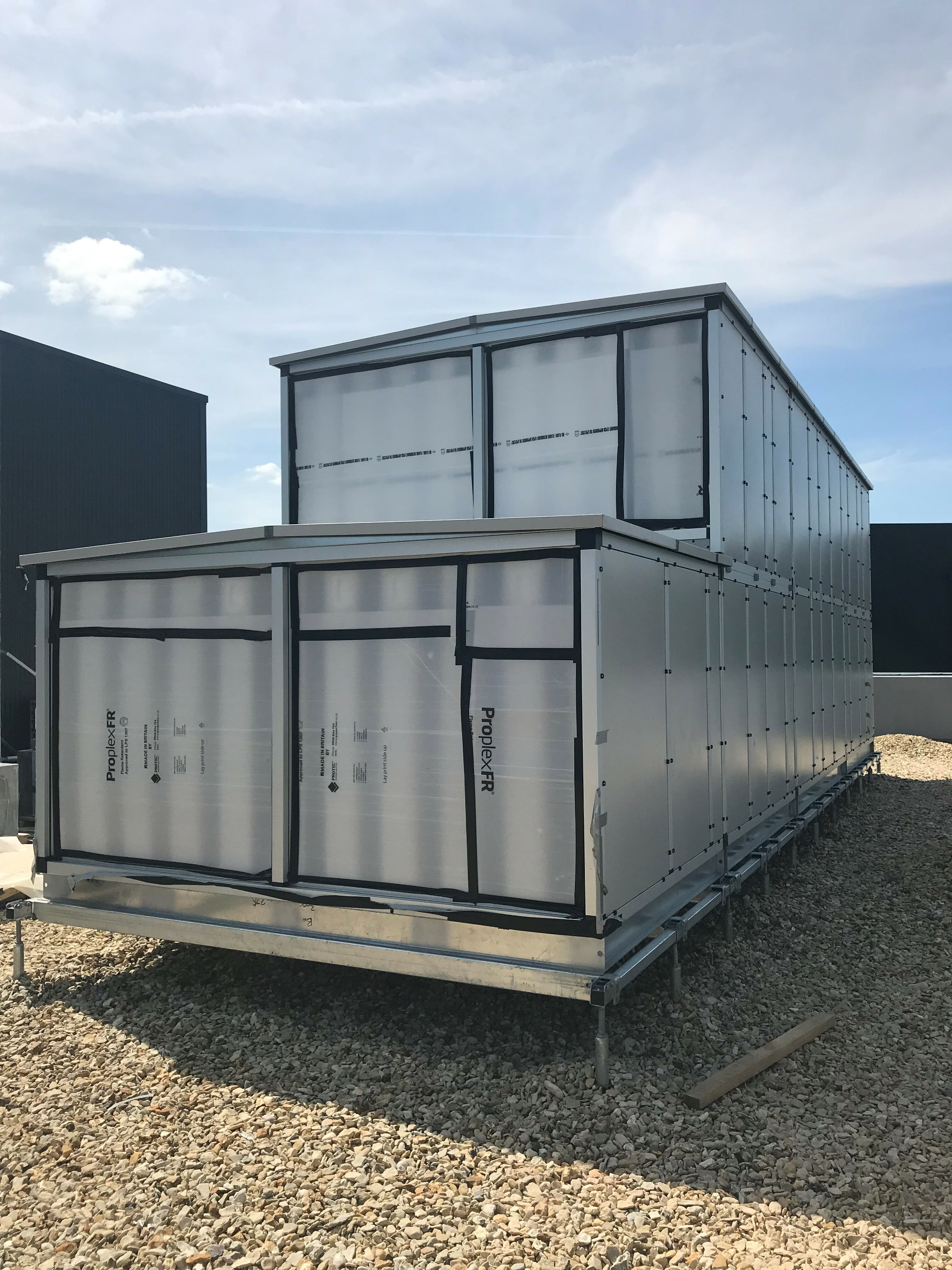

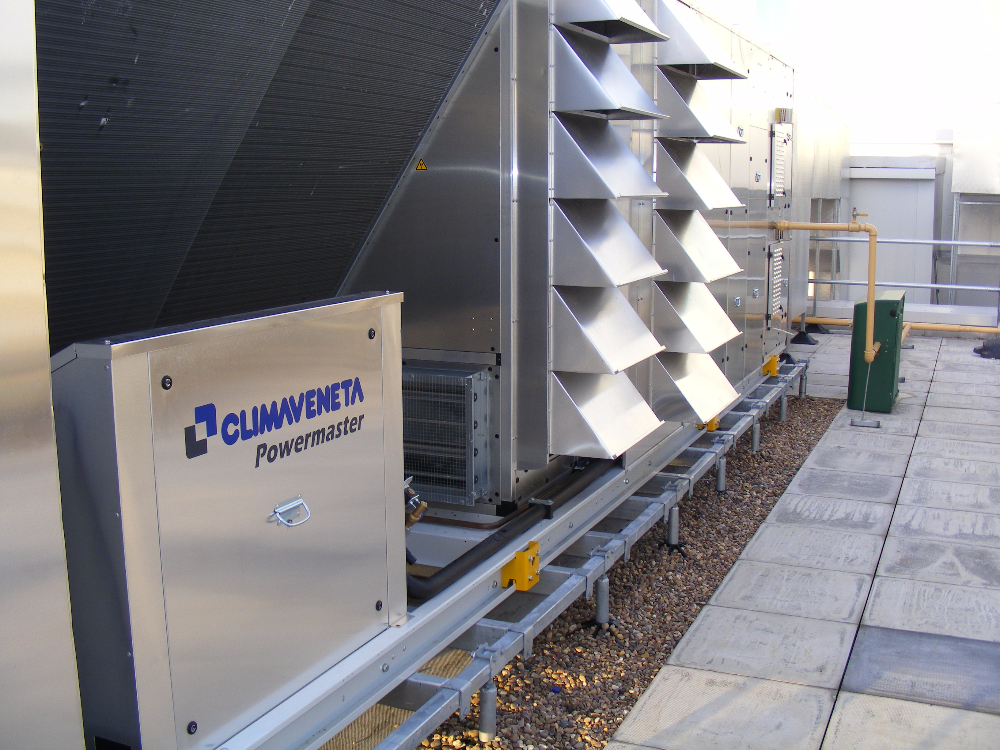

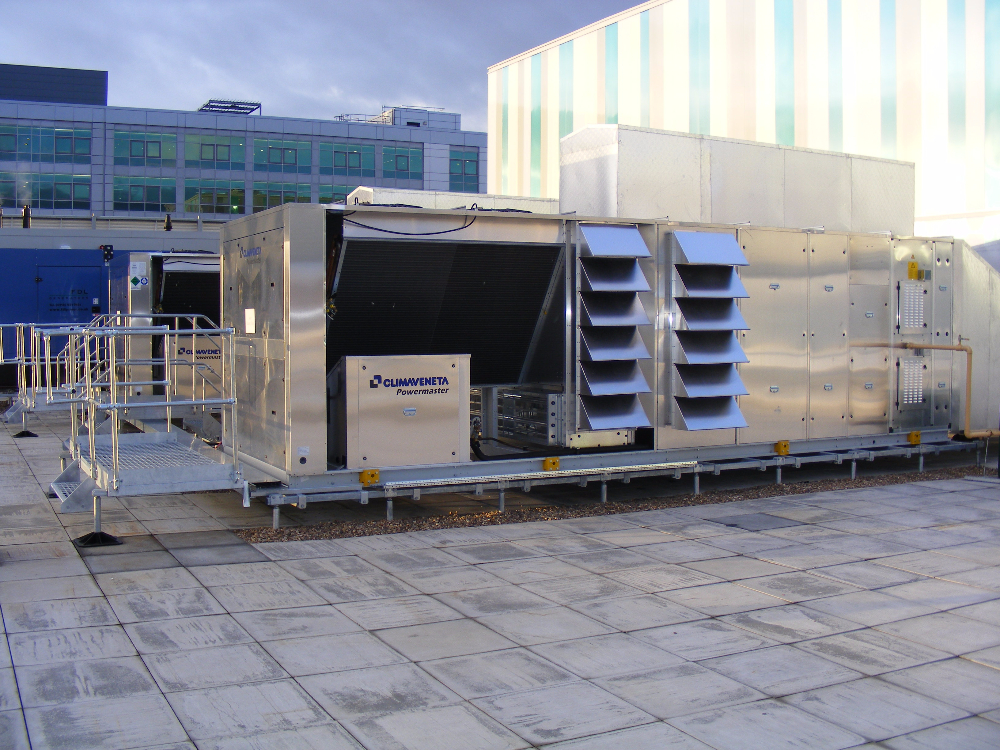

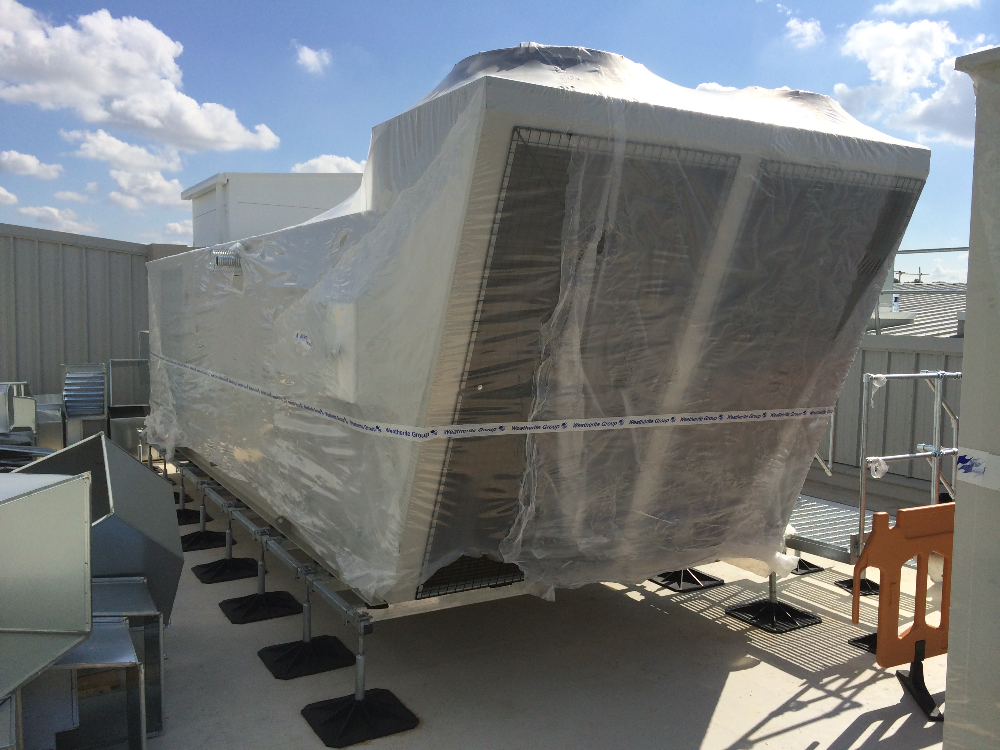

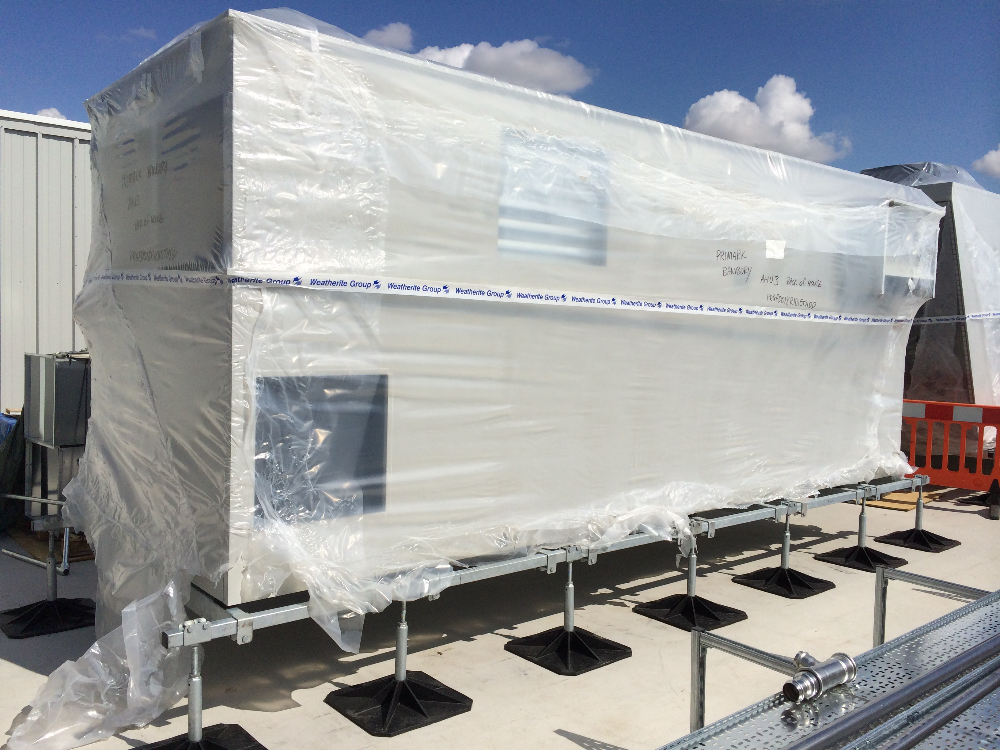

Modular mounting frames for larger air handling units.



>>> Features & Benefits

Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
No time-consuming clamping kits required, crossbars are industry standard strut fix
Crossbars supplied with holes for second fix strut (by others)
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services

We are also a member of:





>>> Specification

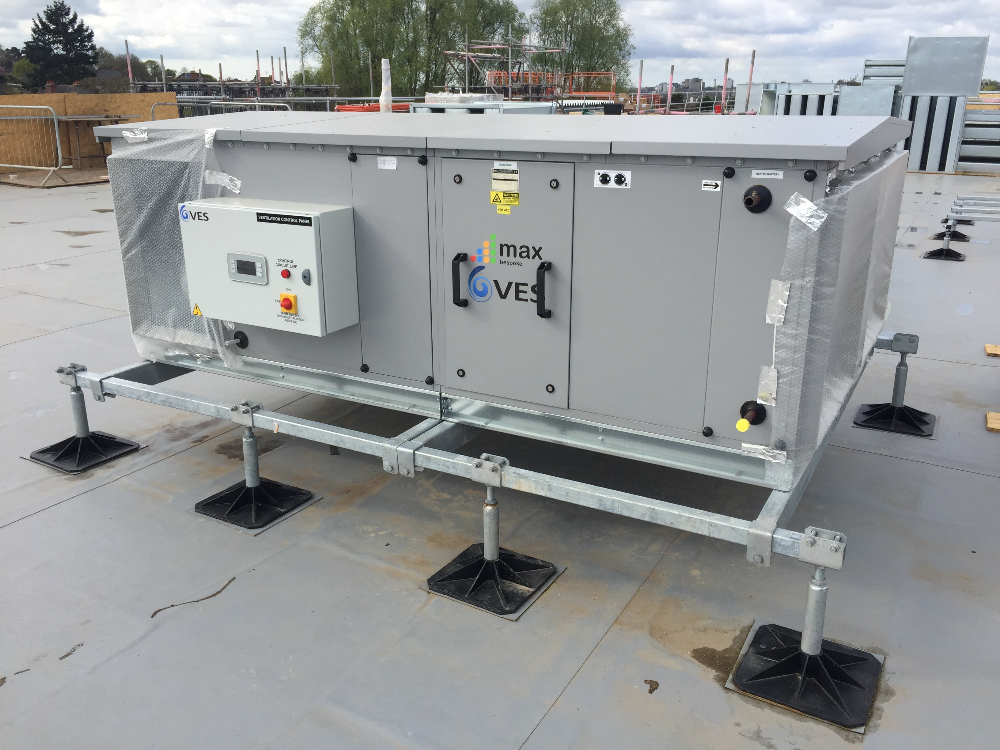

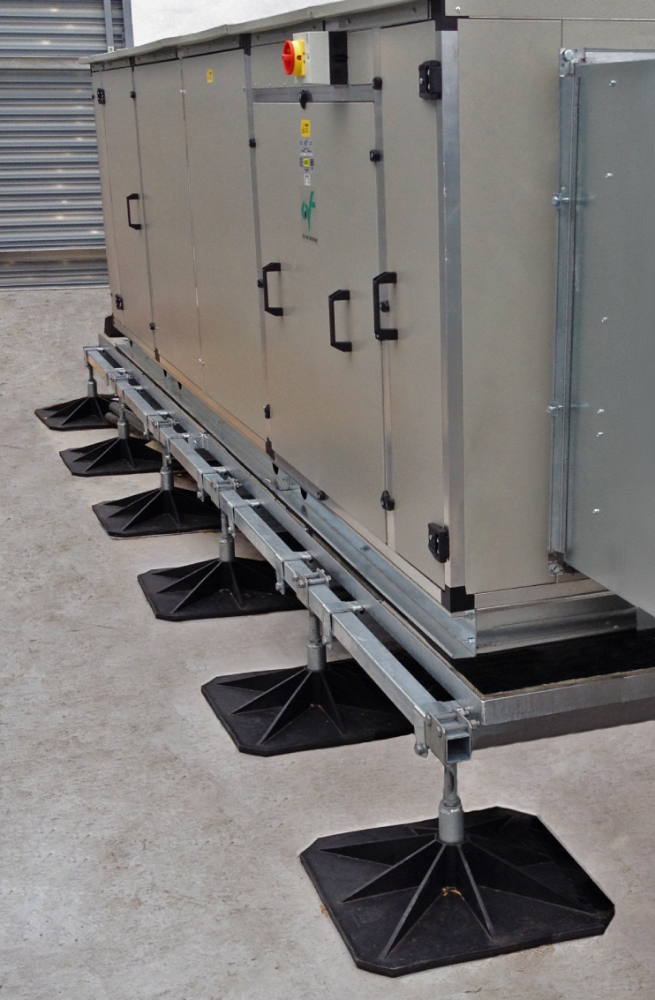

These robust free-standing modular frameworks are supplied with fully adjustable leg assemblies in either our 320 x 320mm or 500 x 500mm polypropylene feet incorporating anti-vibration rubber mats adhered to the underside. Robust 50 x 50 mm square hollow section end bars are 2.5mm thick and are supplied with either 50 x 50mm or 100 x 50mm cross bars. With a variety of sizes available for both our end bars and crossbars, a suitable framework can be designed to suit many applications where durable support is critical. For lighter weight frames, please look at the AC/VRF Frames range.

Part Code SHS Section 1000mm 1500mm 2000mm 2500mm 3000mm 3500mm
End Bar 50x50x2.5 PHF-005A PHF-005B PHF-005C - PHF-005D -
Cross Bar 50x50x3.0 - PHF-016 - - - -
Cross Bar 100x50x3.2 - - PHF-016A PHF-016B PHF-016C PHF-016D
