An economical solution for the support of solar PV and solar thermal.



>>> Features & Benefits

Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Full AutoCAD drawing support
Supplied with integrated 21 x 41mm steel strut, fully bonded to the foot, stronger than some aluminium alternatives
Drainage slots to the underside

>>> Specification

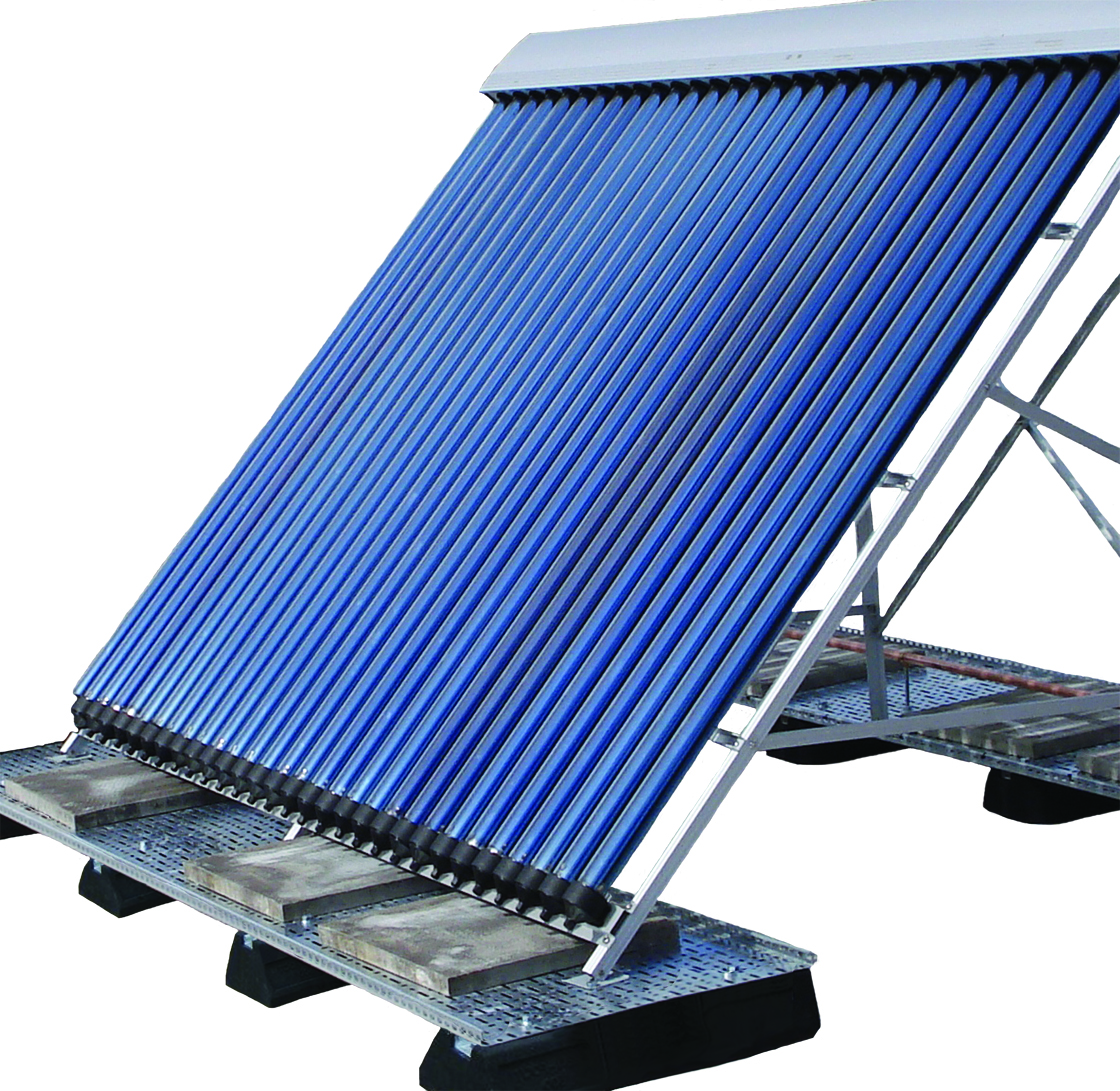

Flexi Eco-Packs offer the installer a fast and straightforward solution for the support of Photovoltaic panels and Solar Thermal units where value engineering is required. Supplied in pairs, these 600mm long feet are also provided with their fixing pack, (M10 sets and sprung nuts), for rigid securing to the ‘A’ frame. These feet offer a base foundation to secure a length of cable tray which in turn acts as a carrier for the concrete paving slab ballast. The feet are manufactured from dense SBR recycled rubber and house an integrated length of 21 x 41mm hot dip galvanised strut bonded to the foot. ‘A’ frame, tray, and ballast are supplied by others.

We are also a member of:

Part Code Description Length mm Width mm Height mm Safe Working Load Weight
FF-400-S Flexi Foot with strut - 400mm 400 185 100 280kg 4.6kg

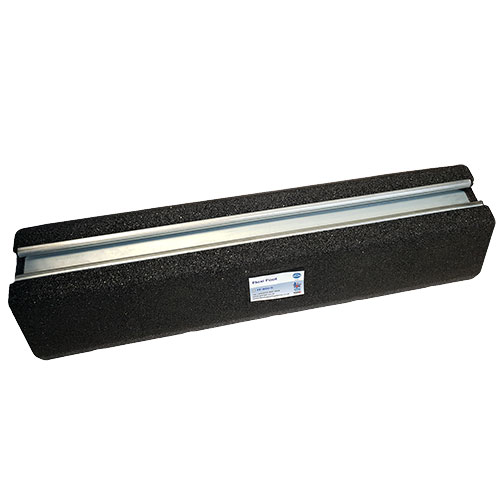

FF-600-S Flexi Foot with strut - 600mm 600 185 100 420kg 7.6kg
FF-1000-S Flexi Foot with strut - 1000mm 1000 185 100 700kg 12kg
