Adjustable frameworks for the support of solar PV panels and solar thermal.



>>> Features & Benefits

Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Industry compatible standard components
Custom layouts available to order
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services

>>> Specification

These versatile free-standing modular frames are supplied with our fully adjustable leg assemblies utilising M24 adjuster studs to level frames where flat roofs have greater falls or changes in height. We can provide varying leg heights to accommodate steps in the roof finish, and all frameworks are supplied with our 320 x 320mm feet. End bars are a robust 40 x 40mm box section with 1500mm wide 41 x 41 mm strut cross bars which provides an independent non-evasive support frame for the contractor to position their ‘A’ frames, solar panels and ballast accordingly. Our systems utilise industry standard compatible components and can accommodate most significant manufacturers panels.

We are also a member of:

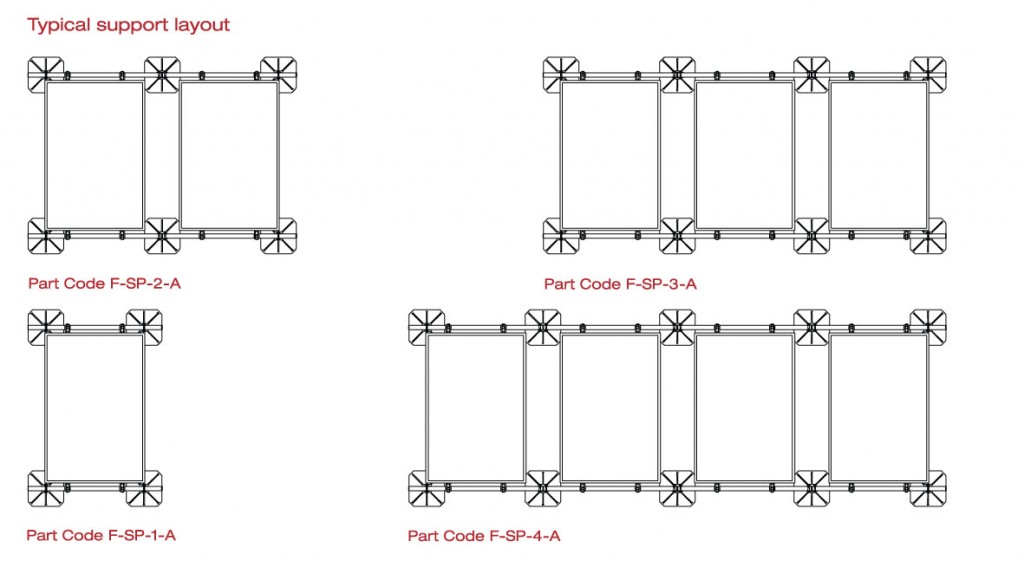

Part Code Description Panel Qty Length mm Width mm Height mm Safe Working Load Weight
F-SP-1-A Flexi - Solar 1 Panel Adjustable Frame 1 1200mm 1500mm 300-405mm 28kg 500kg
F-SP-2-A Flexi - Solar 2 Panel Adjustable Frame 2 2400mm 1500mm 300-405mm 52kg 1000kg
F-SP-3-A Flexi - Solar 3 Adjustable Panel Frame 3 3600mm 1500mm 300-405mm 78kg 1500kg
F-SP-4-A Flexi - Solar 4 Adjustable Panel Frame 4 4800mm 1500mm 300-405mm 100kg 2000kg
