Non-adjustable frameworks for the support of solar PV panels and solar thermal.
We are also a member of:
>>> Specification

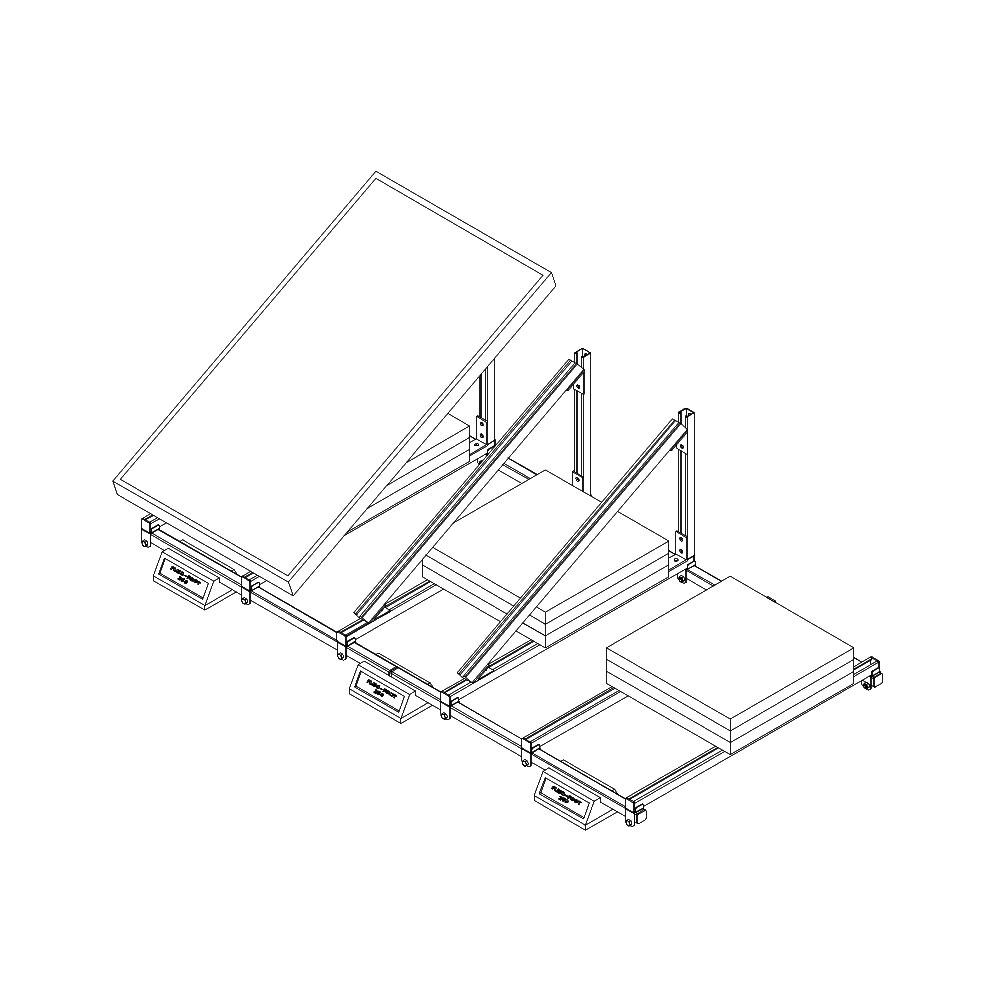

These low level & versatile free-standing modular frames are supplied with our ‘Flexi-Foot’ Universal feet and designed for typical flat roofs with minimal falls or changes in height.
End bars are a robust 40 x 40mm box section with 1500mm wide 41 x 41mm strut cross bars which provides an independent non-evasive support frame for the contractor to position their ‘A’ frames, solar panels and ballast accordingly.
>>> Features & Benefits
Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Industry compatible standard components
Custom layouts available to order
Full AutoCAD drawing supportLoad management and wind calculations available
Full on-site support and surveying services
| Part Code | Description | Panel Qty | Length mm | Width mm | Height mm | Safe Working Load | Weight |
|---|---|---|---|---|---|---|---|
| F-SP-1-A | Flexi - Solar 1 Panel Adjustable Frame | 1 | 1200mm | 1500mm | 300-405mm | 28kg | 500kg |
| F-SP-2-A | Flexi - Solar 2 Panel Adjustable Frame | 2 | 2400mm | 1500mm | 300-405mm | 52kg | 1000kg |
| F-SP-3-A | Flexi - Solar 3 Adjustable Panel Frame | 3 | 3600mm | 1500mm | 300-405mm | 78kg | 1500kg |
| F-SP-4-A | Flexi - Solar 4 Adjustable Panel Frame | 4 | 4800mm | 1500mm | 300-405mm | 100kg | 2000kg |
