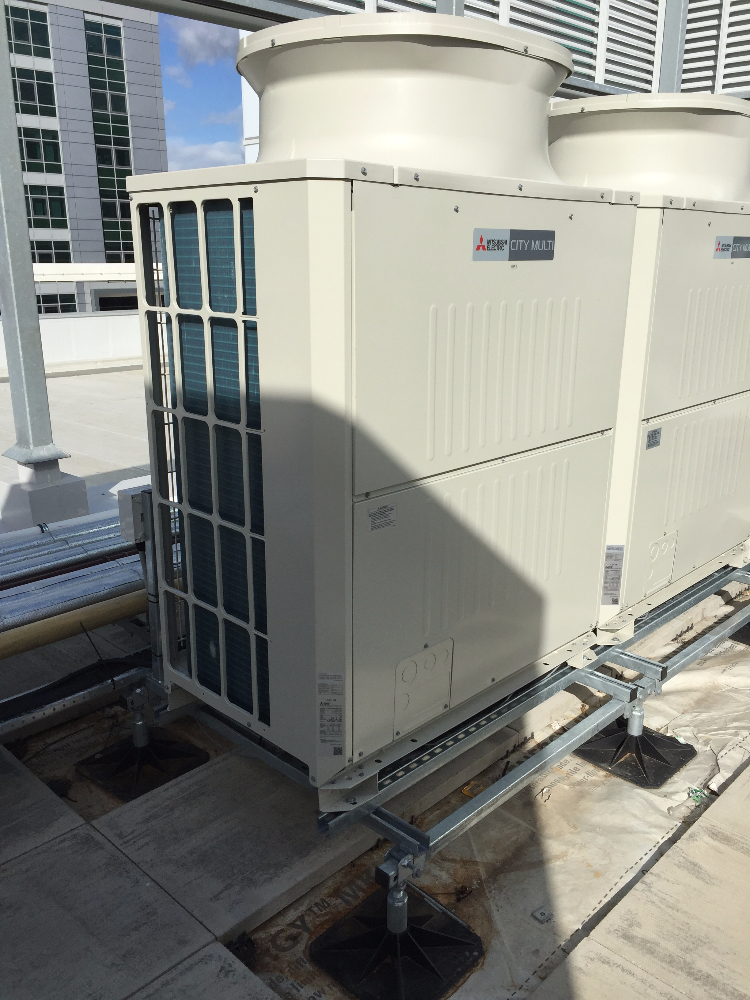

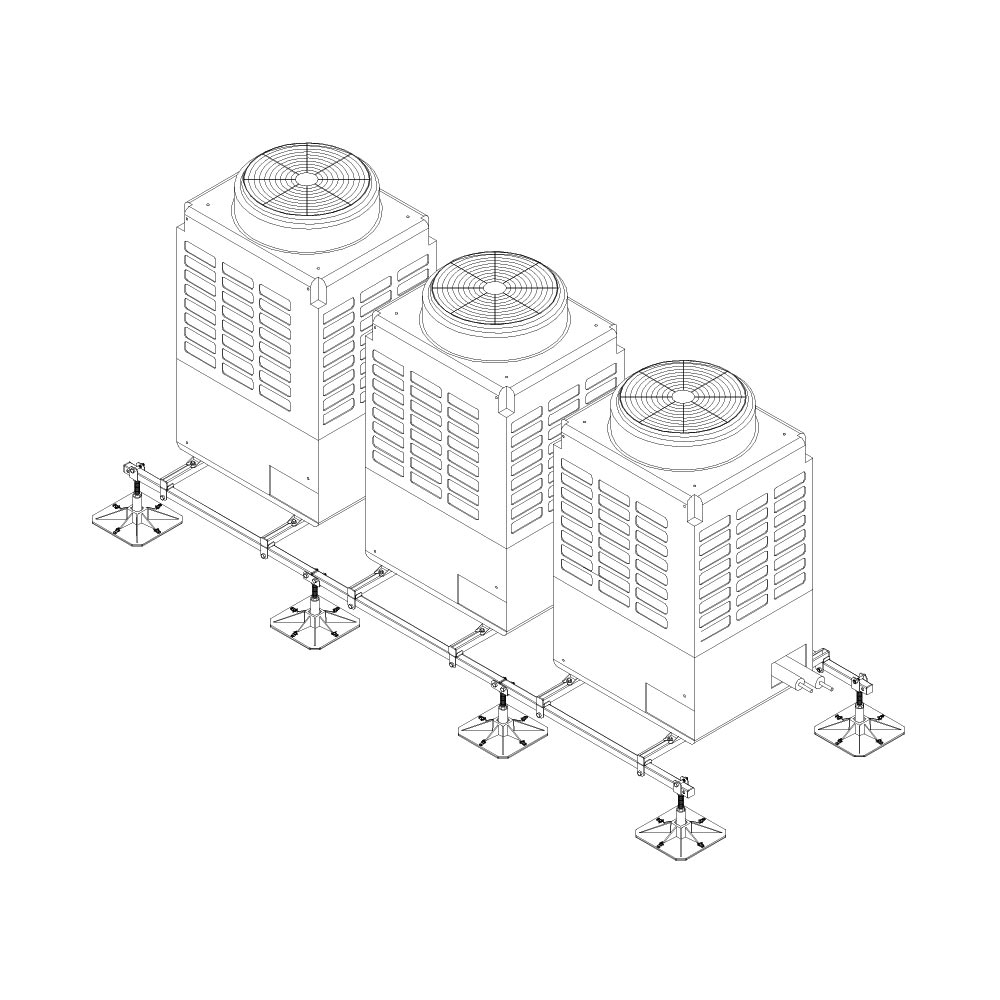

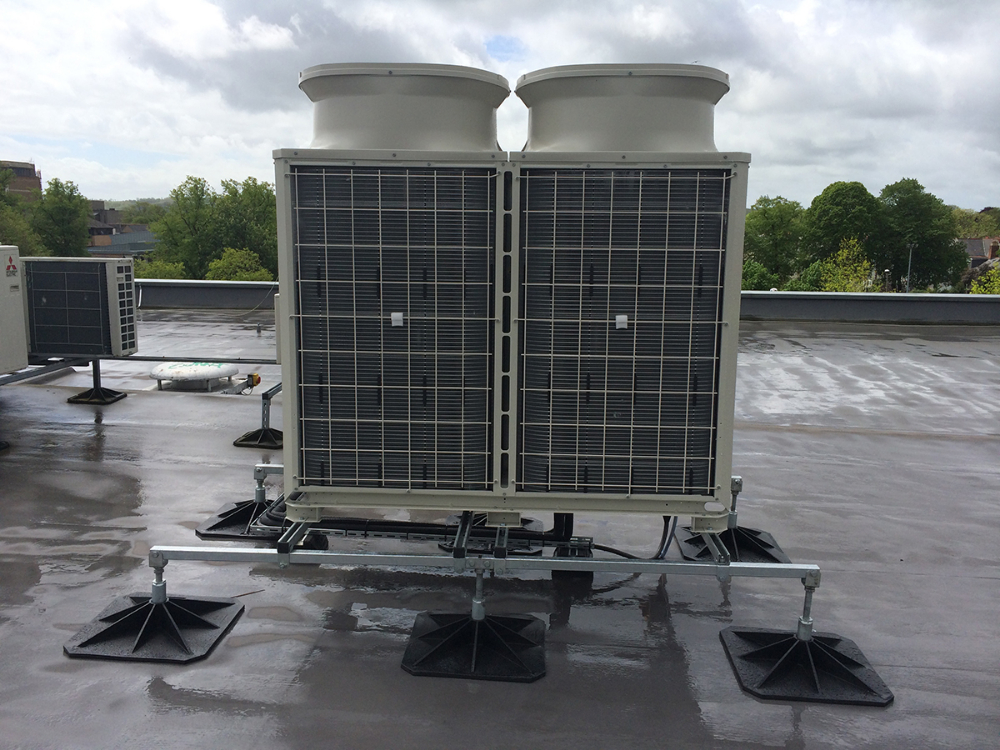

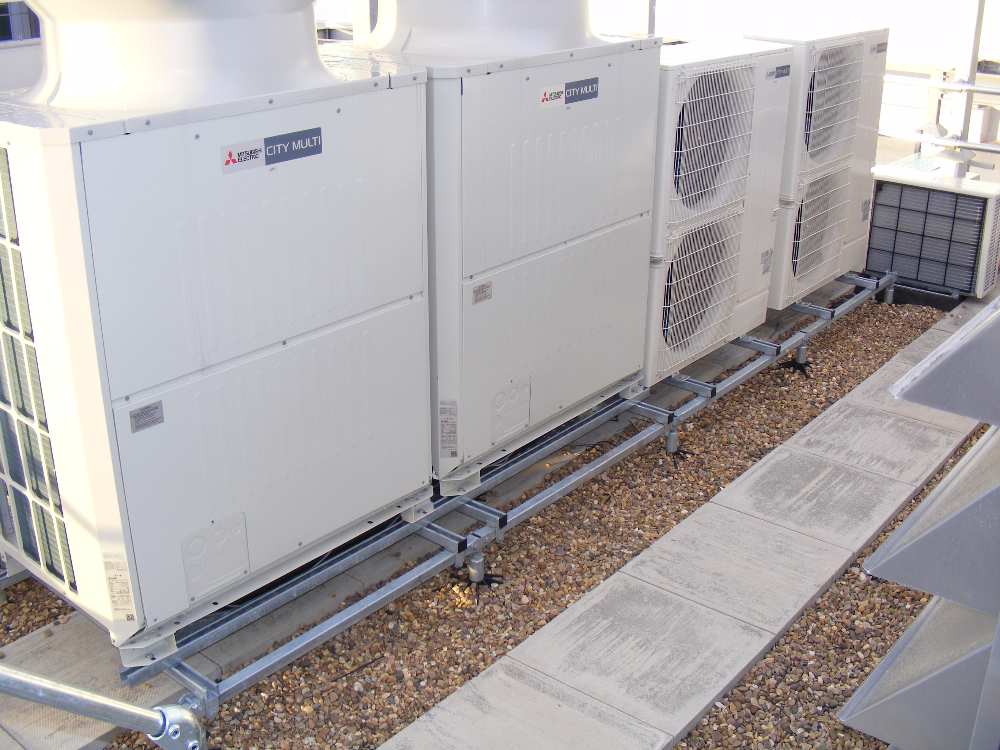

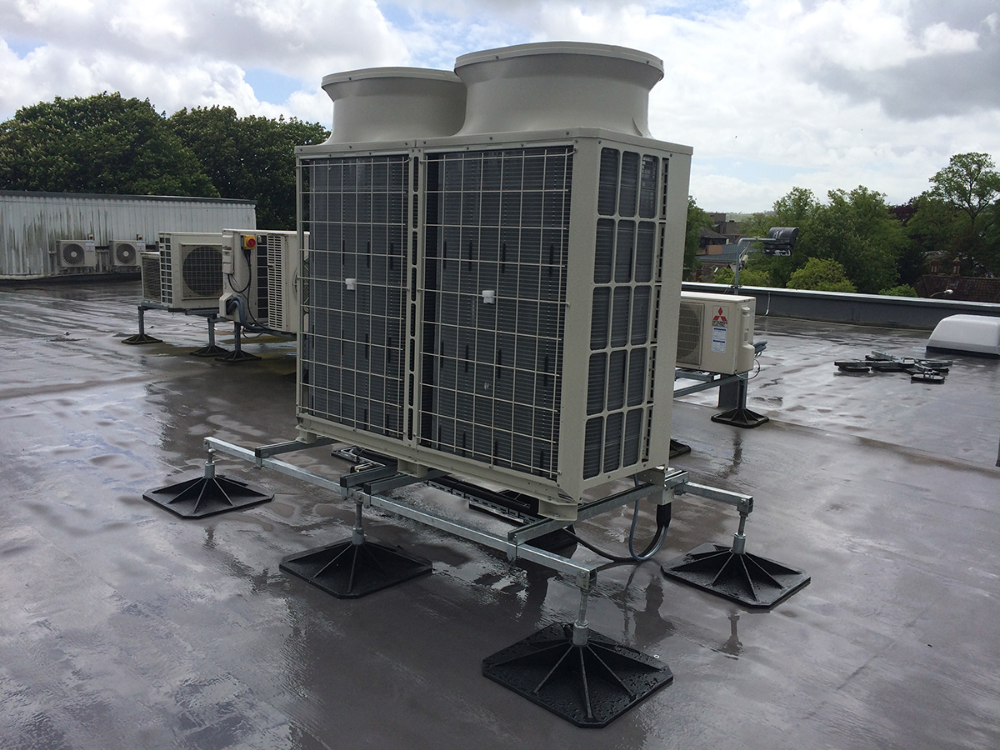

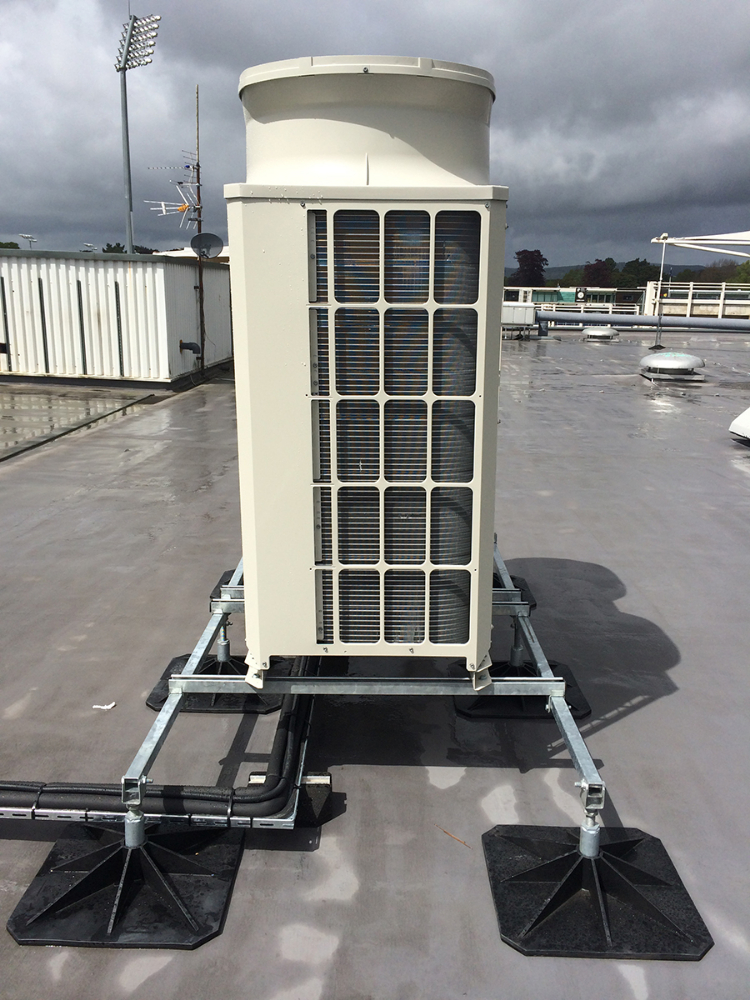

Modular Roof Support Frames suitable for VRV – VRF systems
>>> Features & Benefits
Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
No time-consuming clamping kits required, crossbars are industry standard strut fix
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services
Available as a standard 320mm square foot or 500mm option for heavy duty applications
We are also a member of:
>>> Specification
These versatile free-standing frameworks are supplied boxed and come with fully adjustable leg assemblies with 320mm square black polypropylene feet as standard*, incorporating anti-vibration rubber mats adhered to the underside. Robust 40 x 40mm standard box end bars are 3mm thick, and leg assemblies can slide to many positions. Industry standard strut cross bars negated the requirements of time-consuming clamping kits as sprung washers and associated M10 fixings are supplied with all frameworks. For more substantial services, please visit our ‘FLEXI Heavy’ range.
*500mm square foot option for heavy duty applications
| Part Code | Description | Length | Width | Min. Height | Max. Height | Safe Working Load | Weight |
|---|---|---|---|---|---|---|---|
| PH-BF-B | Flexi Base Frame | 1200mm | 1200mm | 300mm | 405mm | 500kg | 30kg |
| PH-EF-B | Flexi Extender Frame | 1200mm | 1200mm | 300mm | 405mm | 500kg | 24kg |
