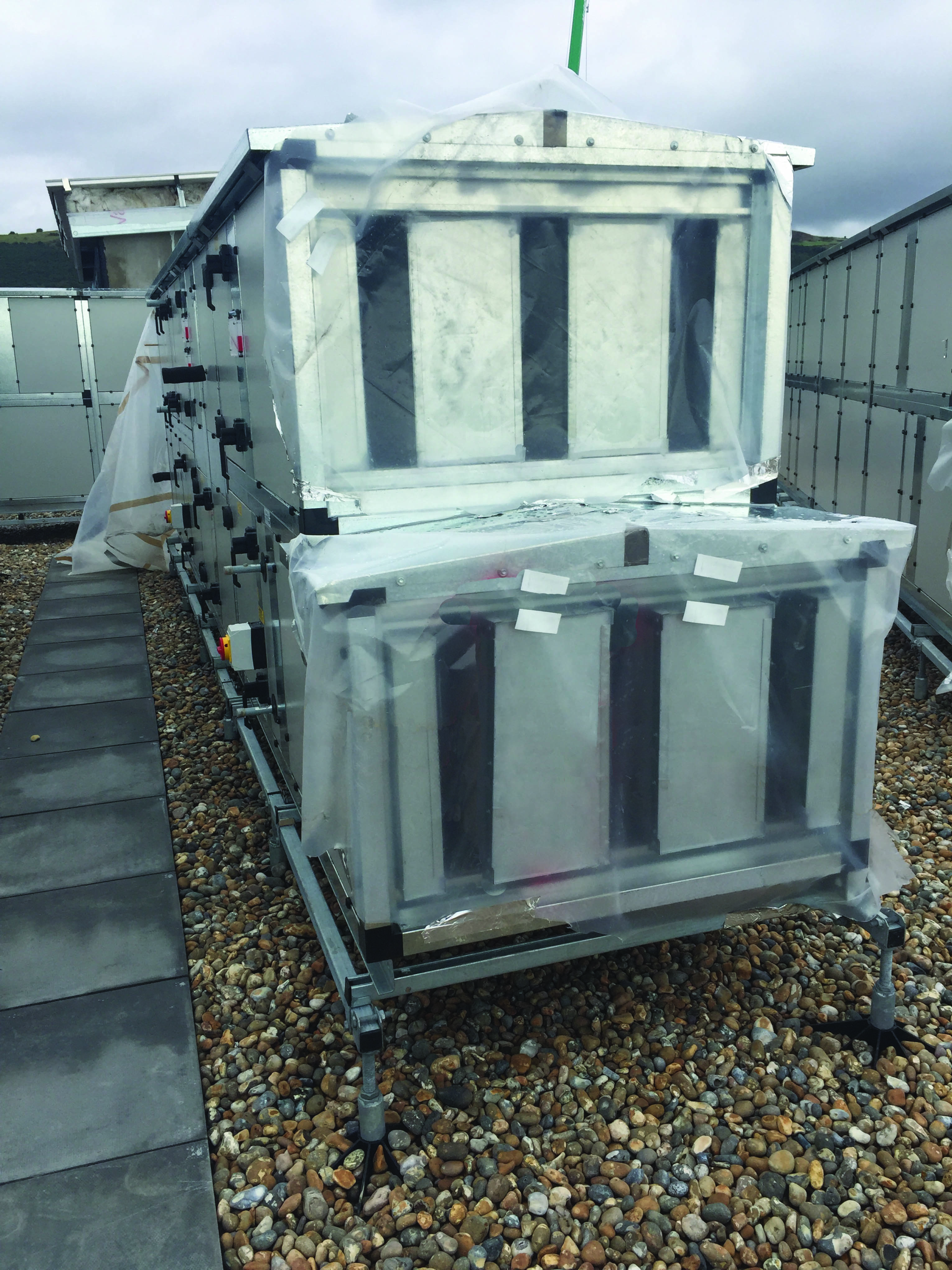

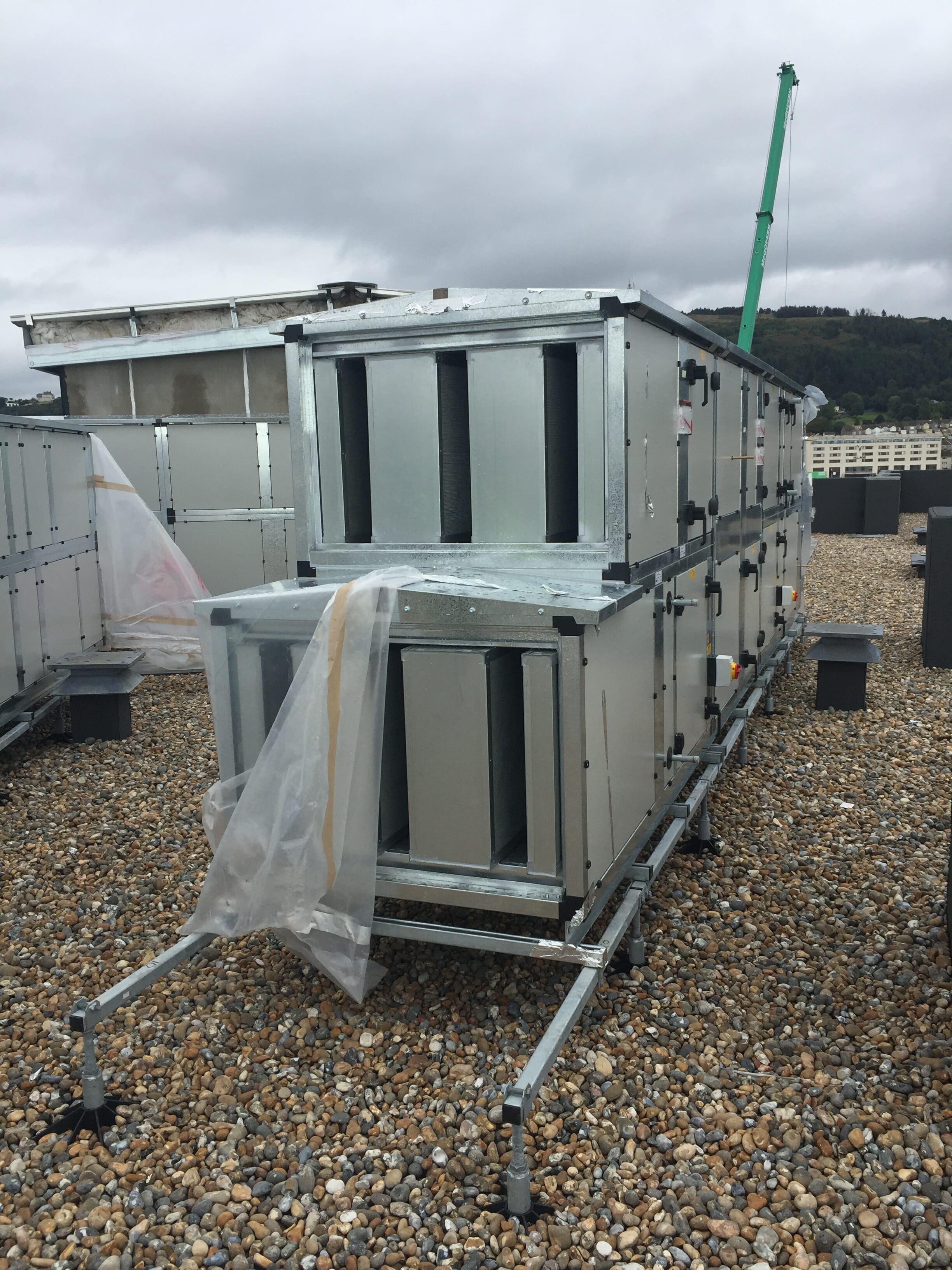

Modular Frames for smaller Air Handling Units (AHU’s)
>>> Features & Benefits
Non-penetrative support
Flexible design to accommodate late design changes
Fast and simple installation
Hot dip galvanised frameworks
Fully adjustable to roof falls
No time-consuming clamping kits required, crossbars are industry standard strut fix
Full AutoCAD drawing support
Load management and wind calculations available
Full on-site support and surveying services
>>> Specification
These versatile free-standing frameworks are supplied boxed and come with fully adjustable M24 leg assemblies and our smaller 320mm square black polypropylene feet as standard, incorporating anti-vibration rubber mats adhered to the underside. Robust 40x40mm standard box section end bars linked to 41 x41 mm strut crossbars that slide along the end bars to accommodate ahu sectional positions. These frameworks are suitable for supporting smaller AHU’s only.
Please refer to our ‘Flexi Heavy Duty Modular Frameworks’ for larger AHU applications.
We are also a member of:
| Part Code | Description | Length | Width | Min. Height | Max. Height | Safe Working Load | Weight |
|---|---|---|---|---|---|---|---|
| PH-BF-B | Flexi Base Frame | 1200mm | 1200mm | 300mm | 405mm | 500kg | 30kg |
| PH-EF-B | Flexi Extender Frame | 1200mm | 1200mm | 300mm | 405mm | 500kg | 24kg |
